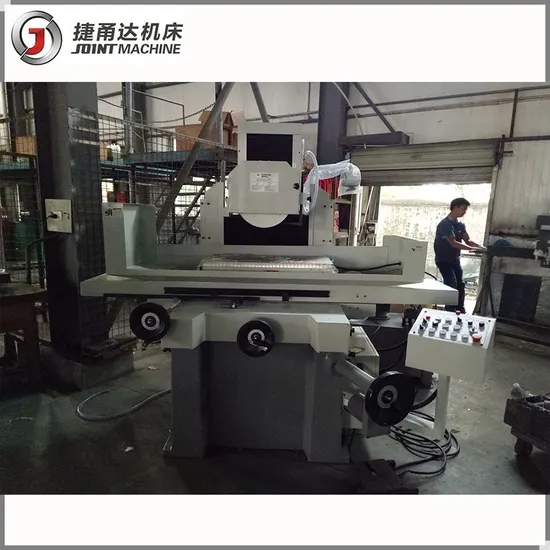

China Manufacturer of Surface Grinding Machine with 800*400mm

Product Description

Product Characteristics:
1. Durable, high precision and high quality.
2. Imported high accuracy grinding head.
3. High quality resin, ageing treatment.
4. Taiwan high quality hydraulic system and high precision grinding head.
Specification sheet:

Model			84 HR
Table size		mm	800*400
X axis travel		mm	840
Y axis travel		mm	420
Table side way			Slide way
Max distance from spindle center to working table		mm	700
Auto crossward feed		mm	0.1-1
Crossward feed of hand wheel		1 Rev	5
		1 Div	0.02
Auto vertical feed		mm	-
Vertical rapid moving feed		mm	-
Vertical feed of hand wheel		1 Rev	2
		1 Div	0.01
Rotation speed	50HZ	rpm	1450
	60HZ	rpm	1750
Grinding wheel size			Φ355×(20-45)×127
Spindle motor			5*4
Hydraulic motor			3*4
Crossward driven motor			0.08*4
Vertical driven motor			0.1*4
Coolant pump motor			-
Dust-clean motor			-
Dimension (L*W*H)		mm	2280*2280*2040
Weight		kg	3000

Standard accessories: 1. Magnet chuck 2. Dust clean / Coolant system 3. Grinding wheel 4. Oil pump 5. Working light 6. Wheel balance arbor 7. Wheel flange and extractor 8. Wheel dressing diamond tip and holder 9. Tool and toolbox 10. Operation manual

Optional accessories: 1. Two axis DRO 2. Coolant system + Dust suction 3. Balancing bracket 4. Inverter 5. Demagnizer 6. Vice 7. Punch dressor 8. Universal dressor

Accessories:

Electric magnet chuck Permanent magnet chuck Demagnizer
Dust-suction Coolant system Balancing bracket
Overview:
Company Information: Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !

---
