Membrane Multiple Pipe Panel Submerged Arc Welding Machine for Boiler Industries

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
PHJ-1600
Frequency Range
Intermediate Frequency
Electric Current
DC
Work Form
One-Body
Type
Submerged-Arc Welder
Saw Welder
USA Lincoln DC1000
Welding Head
4 or 6 PCS
Pipe-Panel Width
1600 or 2000mm
Material
Carbon Steel, Alloy Steel
Transport Package
Nude Packing
Specification
35m3
Trademark
FSM
Origin
China
HS Code
8468800000
Production Capacity
20 Set Per Year

Product Description

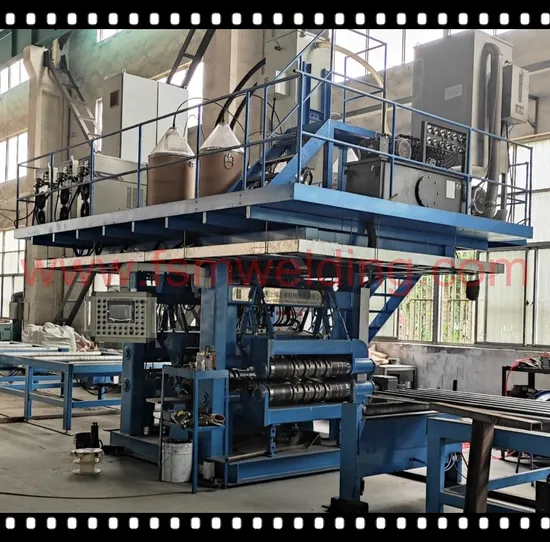

Product Description Membrane pipe-panel welding machine is used for welding the fin bar and rust-removed tube by submerged arc welding way, and weld the pipe-panel unit group into a large one.
- Use arc wheel as tool-accurately position the work-piece
- Hydraulic clamping - clamp the work-piece firmly
- Current balance - optimise current circuit and improve welding quality

Product Parameters
Item Specification
Tube diameter φ32-76mm
Tube wall thickness 3-12mm
Fin bar width 12-120mm
Fin bar thickness 3-12mm
Maximum pipe-panel width 1600mm
Pipe-panel material Carbon steel or annealed alloy steel
Welding wire diameter φ1.6 or 2.0mm
Wire feeding speed 1-10m/min
Welding torch 6 sets
Welding speed 500-1200mm/min adjustable
Welding current 360A at 100% duty cycle
Welding method SAW welding

Spare Parts
Item Specification Quantity
Wire feed rack φ1.6 or 2.0mm 1 set
Contact tip M6/ φ1.6 or 2.0mm 20 pcs
Oiler / 1 pc
Spanner 9 pcs 1 set
Monkey spanner 8" 1
Diagonal cutting nippers 6" 1
Screw driver 4" - shape 1
Screw driver 4" + shape 1
Ruler 150mm 1
Plastic tool box / 1

Packaging & Shipping
Company Profile
FAQ 1. Where is your factory located ?
Friendship Machinery CO., LTD (FSM) is located in Wuxi, Jiangsu, and about 40mins from Shanghai if take railway.
2. How can you guarantee your product quality?
From raw material purchase to production, FSM has strict restriction. And we will provide 1 year warranty time for all the products. ISO 9001 and CE certification can be provided.
3. How long is one order production time?
After you place a order, the production handling time is about 25-30 days. It will subject to our factory production schedule.
4. Can you accept special order?
Yes, we have our own R&D center , and our engineer can provide machine drawing according to your requirement.
5. Are your engineers available for oversea project ?
Yes, our engineers can be delegated aboard for machine installation and debugging.
6. How can you make sure the deal safe?
You can pay by TT/ LC. Making the world a better place is our company's beautiful vision, we will be your trusted partner.
