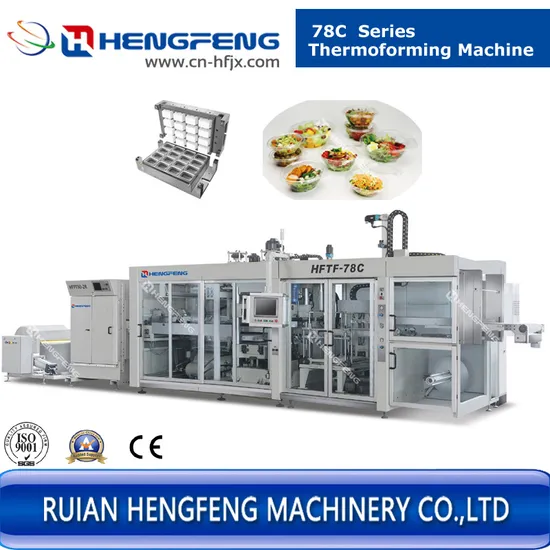

Plastic PP Lid/Cover Thermoforming Machine

Product Description

Application
Thermoforming Machine are mainly produce upscale plastic containers like bowls,square boxes,lids,trays,etc. It is suitable for PP,PS,OPS,PVC,PETand PLA
material.
Feature
Have two stations:Thermoforming(cutting in mould)-Stacking.
All movements driven by servo motor.
Feeding,forming,cutting and stacking processing are compete production automatically.
Mould with rapid change device,easy maintenance.
Forming with 6bar air pressure and vacuum.
Maximum speed 50 cycles per minutes.

HFTF78C/2 Main Parameter:
Max.Forming Area	750*550mm
Positive/Negative Forming Depth	120mm/120mm
Sheet width Range	600-820mm
Sheet Thickness Range	0.15-1.5mm
Max.Sheet Rolling Dia	1200mm
Air pressure	5-6bar
Water consumption	60L/min
Air consumption	3000L/min
Max.Clamping force	350KN
Max.Stroke	140mm
Max.Dry Speed	40Cycles/min
Closing Mold Servo motor power	11kw
Down holder Servo Motor	4.4kw
Feeding Motor Power	4.4kw
Max.Sheet Feeding Length	600mm
Scrap rewind motor power	0.55kw
Heating power	110kw
Power	380V,50Hz,3Phase
Max.Sheet Feeding Length	600mm
Overall Dimension	12000*3200*3000MM
Machine Weight	13500KGS
Cutting Press(Steel Rule Cutting)
Max.cut dimension	750*550mm
Platen clamping force	750KN

Add: No.1 Henghe Road Feiyun Subdistrict Ruian City Zhengjiang
Tel: (+86)577-6557 5059
Phone:(+86)13806538363
Homepage: http://hf-sheetmachine.en.made-in-china.com
WATCH OUR VODEO IN YOUTUBE:
https://hf-sheetmachine.en.made-in-china.com

---
