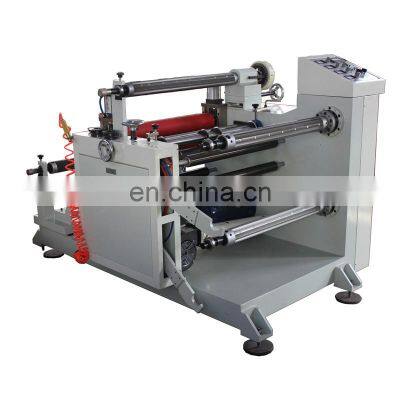

PVC Film / PET Film / PP Film Slitter Rewinder Paper Slitting Rewinding Machine
Functional characteristics:
This is slitting rewinding machine with laminating function,with inflatable shaft to unwind and rewind materials,magnetic powder to control the tension,EPC web guiding controller system to rectify the material in line,automatic meter counter,precise slitting,fast slitting speed,easy operation and maintenance.
Purpose:
This machine can slit flexible materials,such as plastic,paper,foam,film,protective film,OPP, PE,PVC,PET,label,sticker,etc.
Main Technical Parameters:
| Model | DP-650 | DP-1300 | DP-1600 |
| Max Feeding Width | 650mm | 1300mm | 1600mm |
| Power | 2.2KW | 6KW | 6KW |
| Slitting Speed | 80m/min | 80m/min | 80m/min |
| Minimum slitting width | 25mm | 25mm | 25mm |
| Rewinding Diameter | 450mm | 450mm | 450mm |
| Unwinding Diameter | 600mm | 600mm | 800mm |
| Precision | ± 0.1mm | ± 0.1mm | ± 0.1mm |
| Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ |
>>
