1bzdz-5.3 Heavy-Duty Hydraulic Wing Disc Harrow/Harrow Disc/Disk Harrow/Harrow Disk

Product Description

Disc harrow, harrow disc,disk harrow,harrow disk,light disc harrow,heavy duty disc harrow,disc harrow factory,disc harrow in China,high quality disc harrow,farm disc harrow
Thank you for visiting for our web.Hope the information will be helpful for you

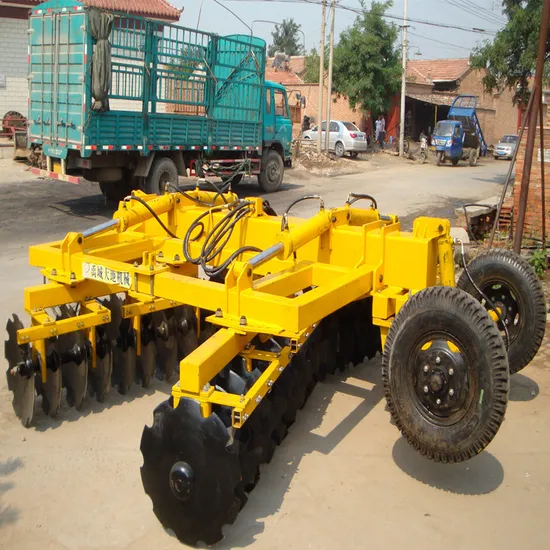

1BZDZ series wing-folded heavy-duty disc harrow are mainly used for cleaning away stubble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry culdtivated fields.The series produced are all fitted with hydraulic rubber wheel for transportation.It is easy to be transported and change direction on the edge of fields.
Technical parameters:

Model	Unit	1BZDZ-4.4	1BZDZ-4.8	1BZDZ-5.3	1BZDZ-6.2
Overall dimension	Mm	5800×4500×1500	5800×4950×1500	5800×5400×1500	5800×6380×1500
Weight	Kg	3100~3150	3250~3300	3400~3450	4150-4200
Working width	M	4.4	4.8	5.3	6.2
Working depth		240
Blade spacing	Mm	230
No of disc	Pc	40	44	48	56
Dia.Of disc	Mm	660
Transport clearance	Mm	>260
Productivity	Ha/h	2.7	3.2	3.8	4.65
Matched power	HP	105-110	115-120	125-130	140-160
Linkage		Trailed

---
