Basic Info.
Certification
GS, CE, RoHS, ISO 9001
Product Name

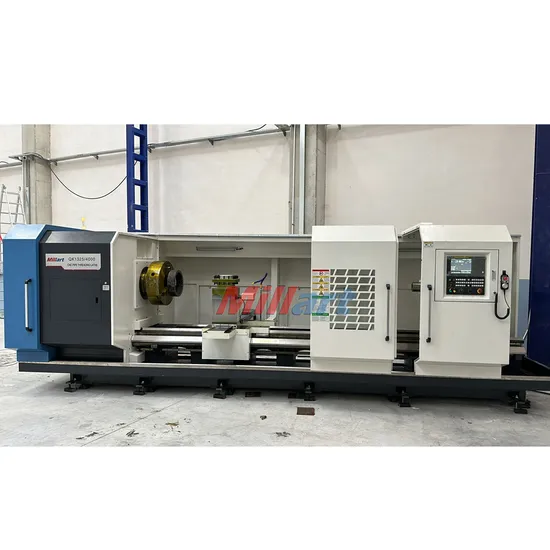

CNC Oil Country Lathe
Max Dia.Swing Over Bed
670mm
Max Dia.Swing Over Cross Slide
380mm
Max.Length of Work-Piece
1500kg
Power of Spindle Motor
11kw
Overall Dimensions(L*W*H)
3657*1555*1360mm
Transport Package
Plywood Case
Specification
4600*2060/2100*2100mm
Production Capacity
200units/Month
Product Description
Product description:
Technical parameter :
Technical parameter :
| Item | Unit | QK1322 |
| Max dia.swing over bed | mm | 670 |
| Max dia.swing over cross slide | mm | 380 |
| Max.length of work-piece | mm | 1500 |
| Width of bed | mm | 550 |
| Spindle bore | mm | 225 |
| Power of spindle motor | Kw | 11 |
| Mode of spindle speed | | Two gears, smooth adjustment |
| Range of spindle speed | r/min | Low:25-120 High:100-500 |
| Max.traverse of X/Z | mm | X:350 Z:1250 |
| X/Z rapid traverse | mm/min | 4000 |
| X-axis motor | Speed | r/min | 1500 |
| | Torque | N.m | 10 |
| | Power | Kw | 1.5 |
| | Speed | r/min | 1500 |
| Z-axis motor | Torgue | N.m | 15 |
| | Power | Kw | 2.3 |
| Tailstock quill | Diameter | mm | 100 |
| | Travel | mm | 250 |
| | Taper | | Morse NO.5 |
| Electric tool-post | Model | | LDB4-6180 |
| | No.of tool stations | | Vertical four-station |
| | Dimension | mm | 32x32 |
| | Turret indexing time | S | 2.6 |
| Chuck | | K11-500 three jaw chuck |
| Positioning accuracy | mm | 0.020 |
| Repositioning accuracy | mm | 0.01 |
| Overall dimensions(L*W*H) | mm | 3657×1555×1360 |
| Machine weight | T | 4.6 |
Standard accessories:
Fanuc 0i TF controller
4 position NC turret
Coolant system
Lubricating system
Work lamp
Semi closed cover
Manual tail stock
Double chucks
Rear support brackets
Pad iron
User manual
Operate tools
Optional accessories:
CNC system Siemens, GSK etc
Servo turret, Hydraulic turret, 6 position turret
Chip conveyor
Full closed cover
Hydraulic tail stock
Steady rest
Follow rest
Grinding attachment Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.
Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
>>
