Product Details
Product Description
Product Description
Shandong Tek Machinery 1000L Microbrewery Beer Brewing Equipment for Sale
1. Tek beer equipment is used for Bar, Brewpub, Restaurant, Microbrewery and small Craft Beer Brewing company, Capacity from 100L to 20000L.
2. The Beer brewing system is complete new, unused and high quality configurations.
3. The whole set equipment is completely made of SUS304, 316 or red copper as requirement.
4. 100% TIG welding with pure argon gas shield.
5. Interior Finish: 0.4~0.6μm/Mirror Polishing.
6. The brewhouse heating can be designed as Steam, Electric, Gas direct fire, Baine Marie accordingly.
7.The fermenter is cylinder conical tank type with Dimple cooling jackets
8. Electrcial controller system can be customized to CE/UL/CSA standards
1000L 10HL beer brewing equipment system mainly including:
Malt Milling System
Brewhouse System
Fermentation System
Cooling System
Controlling System
And Auxiliary Equipment
Specifications
| System | Equipments | Specifications | Quantity |
| Malt Miller | Stainless Steel Malt Miller | 300Kg/H | 1 |
| Brewhouse | Mash Tun Lauter Tank | 1000L | 1 |
| Brew Kettle Whirlpool Tank | 1000L | 1 |
| Hot Water Tank | 1000L/2000L | 1 |
| Plate Heat Exchanger | 10M2 | 1 |
| Wort Pump | 3T/H | 1 |
| HLT Pump | 3T/H | 1 |
| Brewhouse Pipeline and Valves |
| 1 |
| Work Platform |
| 1 |
| Fermentor | Fermenters | 2000l/1000L | 1-30 |
| Brite Tanks | 2000l/1000L | 1-30 |
| Yeast Tank | 30L | 1 |
| Wort Oxygenator |
| 1 |
| Chiller System | Glycol Water Tank | 1500L | 1 |
| Chiller | 8Hp | 1 |
| Glycol Water Pump | 3T/H | 1 |
| Cleaning | Alkali tank | 100L | 1 |
| Sterilization tank | 100L | 1 |
| CIP Pump | 3T/H | 1 |
| Controller | PID or PLC Control box |
| 1 |
| Spare parts | Including Valves, Fittings, Gauges… |
|
|
Please contact us for more details
E-mail: info@brewdistillequipment.com
WhatsApp: 008615064002311
Details As Followings

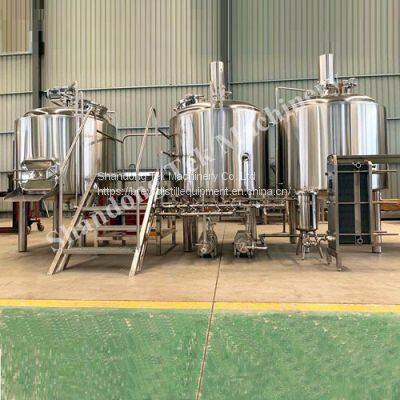

Beer Brewhouse System
Vessels:2/3/4/5 Vessels
Regular: MLT+BKW+HLT.
Mash/Brew Kettle +Lauter & Whirlpool Tank.
Others: Mash Tun, Lauter Tank, Brew Kettle, Whirlpool Tank, HLT, CLT Configurations
Heating Method:
Steam Heating/Electric Heating/ Direct fire/Baine Marie/RIMS/HERMS
Specifications:
With 30% Total Volume
Dome top and cone bottom; bottom cone 160 degree
Interior Shell: SUS304;Exterior Shell: SUS304
Insulation: PU/Rockwool
100% TIG welding with pure argon gas shield
Interior Finish: 0.4~0.6μm/ Mirror Polishing
Top mounted manhole
360° CIP spraying ball
Thermowell with high accuracy temperature sensor PT100
MLT with agitator with motor reducer, CE/UL Listed
MLT with side manhole for spent grains
MLT with easy clean and detachable sparging arm
MLT with easy clean and detachable false bottom
BKW with tangential inlet for whirlpool function
Plate Heat Exchanger
2 stages for Glycol water and City water
SUS 304 Plates and frame
Wort and HLT Pumps: CE/UL Listed
Oxygenator
Brewhouse pipelines and Valves
SUS 304 Working Platform
Optional:
-Grist Case
-Wort Buffer Tank
-Platform with Sink
-Flow meter
-Pneumatic Valves
-Others
Beer Fermenting Vessel/Brites/Unitanks
Total capacity: with 25% headspace
Dome top and cone bottom, bottom cone, 60 degree for BFV
Interior Shell: SUS304, T 3.0mm;
Exterior Shell: SUS304, T 2.0mm;
Insulation: PU, T100mm
100% TIG welding with pure argon gas shield
Interior Finish: to 0.4~0.6μm/ Mirror polishing
Cooling Jacket: both on cone and cylinder parts
Top mounted manhole/Side manhole
Relief Vacuum valve
Dry hop port
Thermometer
Sample valve
Bung apparatus with pressure gauge
Test Pressure: 0.3Mpa;Working pressure: 0.1-0.2Mpa.
Rotating racking arm on cone with butterfly valve
Drainage with butterfly valve
CIP arm with 360° spraying ball
Thermowell with high accuracy temperature sensor: PT100
Optional:
Level Tube
CO2 Carbonation Stone
Copper Shell
Pressurized Hop drop feeder
Other requirements
Dimension design
Other Auxiliary Equipment
Water treatment RO System
Steam boiler: Electric/ Gas/oil
Hop filter tank/Hop tank
Kegs
Beer keg washing machine
Beer keg filling machine
Beer bottle filling and capping machine
Beer bottling system
Beer filter machine
Others
Other Questions, please contact us freely.
Shandong Tek Machinery
E-mail: info@brewdistillequipment.com
WhatsApp: 008615064002311
>>
