US$10,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.

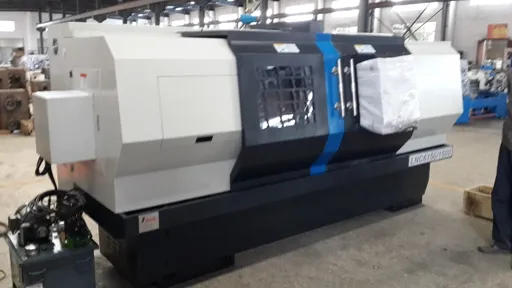

LNC6140B/LNC6150B
Automatic Grade
Automatic
Max Swing Over Bed
400mm,500mm,660mm
Transport Package
Wooden Case
Specification
ISO-conformity
Product Description
Item\Model
| LNC6140
|
CAPACITIES
| Max. swing over bed mm
| 420
|
Max. swing over carriage mm
| 200
|
Max. turning length mm
| 500,750,100,015,002,000
|
Bed width
| 330
|
TRAVEL
| X axis travel mm
| 230
|
Z axis travel mm
| 1080
|
SPINDLE
| Spindle speed rpm
| 150-600-2100 Infinitely Variable
|
Spindle nose mm
| C6
|
Spindle taper
| Metric 70
|
Spindle hole mm
| 65
|
TURRET
| Number of stations
| 4 (6)
|
Tool shank size mm
| 25 x 25
|
Indexing time sec
| 2
|
FEEDS
| Rapid traverse of X axis mm/min
| 3000
|
Rapid traverse of Z axis mm/min
| 6000
|
Cutting feed and Z axis mm/r
| 0.005-100
|
TAILSTOCK
| Taper of tailstock sleeve
| MT5
|
Dia. of tailstock sleeve
| 65
|
Travel of tailstock sleeve
| 100
|
MOTOR
| Main motor power kw
| 5.5
|
X and Z axis motor Nm
| 6 11
|
L x W x H mm
| 2420 x 1567 x 1512
|
Net weight kg
| 2600
|
Type of CNC Controller
| SINUMBERIK 802C/GSK980T
|
Old model
| CK6140
|
Feature:
The machine adopts ISO international code keyboard manual data input, it is also provided with program of power cut-off protection and the functions of automatic diagnosis, and with rs 232 interface.
Longitudinal and cross feeds are effected by ball leadscrews.
Either vertical or horizontal 4-station or 6 station tool post or gang tools can be selected, the post is located on precision contrite gears with a high repeated positioning accuracy.
Both chuck and tailstock are supplied with hydraulic or manual type.
The surface of the bedways id supersonic frequency hardened and precision ground with a long service life.
The spindle bore size is 80mm. The spindle system is high in the rigidity and accuracy, there is no vibration when turning with a cutting depth of 8mm.
Variable spindle speed can be programmed as two ranges, that is high one and low one. Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
