Melamine Edge Banding Machine Woodworking Machinery for Furniture Making

Product Description

Melamine Edge Banding Machine for furniture making.
used for the linear sealing of PVC, wood panel and veneer, acrylic,etc.

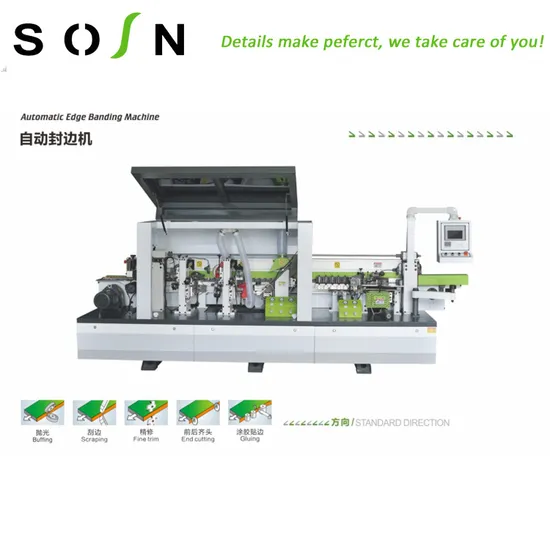

1), edge banding machine picture.
2). Application of Edge banding machine
PVC Edging Banding Machine is used in banding edge of desks,kitchen cabinet,wardrobe,and straight line furnitures;with powerful functions:Edge feeding;Sticking,End cutting,Front-back trimming,Roughing,Fine finishing,Scraping and Buffing,highly improved the working efficiency and quality of door, cabinet, wardrobe, office furniture,room furniture processing.
3).Functions: gluing + end cutting + fine trimming + scrapping + buffing.
---Touch screen:Delta brand,
Woodworking industry's leading brand touch screen, Quick response, avoide accidental touch.
--Gluing
6-wheel pressing are more precise than 4 wheels, glue line Slightly non-running belt, firm fit, different tape can be easily transported, optional cylinder control the glue switch, make sure the edge banding with stable glue quantity, uniform thickness
--End cutting
end cutting of edge banding machine is to cut off the excess edge banding.
gas Cylinder with 2 pressure regulating valves and1 pressure relief valve) air pressure, More stable, more stable all together
--Rough trimming
Adjust knife by the digital meter, easy to operate, six Edge alloy flat knife trims off the excess edge bander.
--Scrapping
The super hard alloy R knife scrapes the fine lines of the edge banding strip, Make the edge bander with good effect.
--buffing:
Quickly polish the edge banding, smoother and more beautiful
Optional functions for the edge banding machine:
double glue system, PUR gluing, premilling, corner rounding, hogging, automatic control of PVC thickness adjustment.
Contact us for each function details explanation.
4).Parameter of 360D edge banding machine.

Motor power	8kw
Overall size	420*1100*1800mm
Feed speed	15-23m/min
Panel thickness	10-60mm
Edge banding tape thickness	0.4-3mm
Panel width	>=80mm
Working air pressure	0.8mpa
Panel length	>=100mm
Voltage	380v/50hz or customerized

5).Features of the Edge banding machine.
a,Edge Banding Material:PVC, Melamine,ABS,Veneer,Solid Wood Strip,etc
b,Workpiece:Plywood, Fire board, MDF board,Solid Wood,Particle board,etc.
c,imported quanlity engines and electric components.
d.serialized products,a wide range of selection for customers.
e.high precision&efficiency.
6).The product made by our edge banding machine.
7) .Package for edge banding machine.
After test the machine all well, firstly do the cleaning work before package.
Strong strech film will be used for the package of the edge banding machine.
we will also do fixing for the edge banding machine in container, try our best to make sure the delivery issue.
8).Our factory :
As leading manufacture of edge banding machine, woodworking machines in China, sincerely welcome your visiting to our factory.
NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: strong stretch film or standard export wooden case package.
4. Delivery time:20-25 days after getting the deposit.
Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs. 2: quick delivery--timely and effective. 3: excellent after-sale services--no worries anymore. 4: friend partner relationship--a win-win cooperation.
We have auto, semi-auto and manual Edge banding machines for your choice.
With professional experience for woodworking machines, we are your trusted supplier, pls contact me to start our cooperation.

---
