Hospital Color Display Heart Fetal Monitor Medical Equipment (SLV-F800G)

Product Description

Product Name:
Hospital Color Display Heart Fetal Monitor medical equipment (SLV-F800G)
Instructions
Fetal Monitor(Monitoring) can acquire fetal heart rate, maternal uterine contraction when pregnancies over 28 weeks to
provide reference data for clinical use.The monitor can be used individually or connected with PC through RJ45 Interface for
the purpose of central monitoring.
Hospital fetal monitor is only suitable for the equipment in hospitals, clinics, doctors offices and patients at home by
professional medical personnel.
Major Features
1.Light dexterous appearance, tops horizontally and walls can be hoisted
2.8.0 "screen color LCD display, rotatable screen to 60°
3.Display of the patient data and curve clearly
4.FHR 120 BPM~160 BPM normal range label
5.Manual records fetal movement
6.Sound and color alarm for high and low fetal heart rate
7.Continuous 24-hour real-time monitoring function
8.Continuous 12-hour patient curve and data storage , playback and print
9.With picture freeze function
10.Optional English interface
11.Single, Twins Monitoring optional
12.9 crystal board band pulsed wave transducer

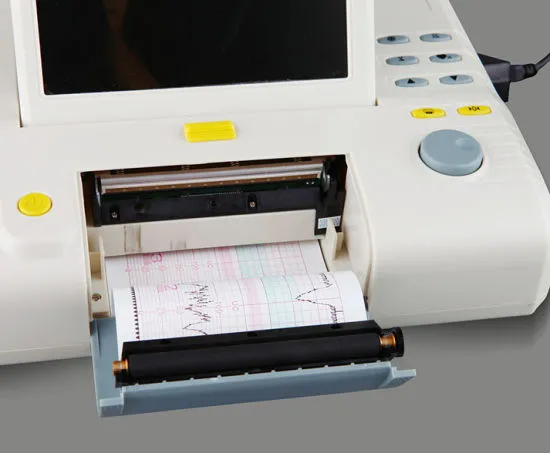

13.Extra-long life, high-resolution built-in thermal recorder
14.Built-in communication port, can be connected with central monitoring system.
Main performance
Security:
-Anti-shock types: Facilities I, no internal power supply
-Anti-electric Shock Degree: B
-Working Voltage: AC 100 V~240 V
-Frequency: 50 Hz/60 Hz P<60 VA Fuse: T1.6AL250VDisplay
-Dimensions: 8.0 "color LCD display, folding 60 degree

Display	Content information: bed No. , pregnancy weeks, age, paper speed, date, time , volume, alarm status, transducer connection status, recorder status, FHR data and wave, Contraction data and wave, Fetal move times and mark etc.
Print	Record Paper two-double type Z Print Width: 112 mm Valid Print Width: 104 mm Paper output speed: 1 cm/min,2 cm/min,3 cm/min(optional) Data Precision: ±5 %(X Roll),±1 %(Y Roll) Record Content: hospital , bed No. ,name, pregnancy weeks, patient No., paper speed, date, time , FHR data and wave, Contraction data and wave, Fetal move times and mark etc.
Ultrasound probe:	Nominal Frequency: 1.0 MHz Work Frequency: 1.0 MHz±10 % Negative peak sound pressure : p_<1 MPa Output beam intensity : Iob<20 mW/cm2 The peak time space peak intensity: Ispta<100 mW/cm2 The average time space peak intensity: Isata<10 mW/cm2 FHR Rang: 50 BPM~240 BPM Resolution: 1 BPM Accuracy : ±2 BPM
TOCO	TOCO range: 0~100 % Resolution: 1 % Nonlinear error: <±10 % RZ way: Manually
Fetal Marking	For the manual button (the operation of pregnant women), there will be a mark display in the bottom area of FHR wave display section. FHR Alarm: Alarm for high and low FHR, which exceeds appointed limit.

Accessories
Sell in standard:
1.Transducers(Ultrasound Transducer I, TOCO Transducer, Remote Marker)
2. Abdomen belt
3. Record Paper
4. Power supply line
5. Earth line
6.Two Fuses
7.User manual
Sell in addition
Ultrasound Transducer II
Physical Characteristics
Size: 320 mm (length) × 260 mm (width) × 80 mm (height)
Weight: about 3 kg

---
