| US$5,000.00-6,000.00 | 1 Piece (MOQ) |
| TECHNICAL PARAMETERS | |||||

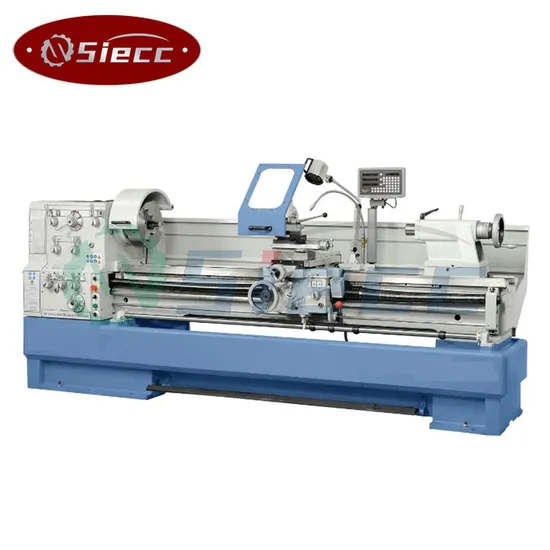

| Model | CH6260B | ||||
| CAPACITY | Max.swing over bed | 600mm | |||
| Max.swing over cross slide | 360mm | ||||
| Max.swing over gap | 730mm | ||||
| Effective length of gap | 260mm | ||||
| Center Distance | 1000mm | ||||
| Bed Width | 330mm | ||||
| CHC HEADSTOCK | Spindle hole | 65mm | |||
| Spindle nose | ISO-D6 | ||||
| Spindle taper | Metric 70mm | ||||
| Spindle speed(Number) | (15steps)22-1800rpm | ||||
| FEEDS | Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | |||
| Cross feeds range | 66kinds 0.036-2.019mm/rev | ||||
| Metric threads range | 66kinds 0.5-28mm | ||||
| Inch threads range | 66kinds 1-56inch | ||||
| Moudle threads range | 33kinds 0.5-3.5mπ | ||||
| Diametral threads range | 33kinds 8-56D.P | ||||
| CARRIAGE | Max.travel of top slide | 130mm | |||
| Max.travel of cross slide | 300mm | ||||
| Max.size of toolshank | 25*25m2 | ||||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | |||
| Taper of tailstock sleeve | MT5 | ||||
| Max.travel of tailstock | 120mm | ||||
| MOTOR | Main drive motor | 5.5KW | |||
| Coolant pump motor | 90W | ||||
| PACKING L*W*H | Center Distance(1000mm) | 242*112*180cm | |||
| N.W/G.W | Center Distance(1000mm) | 1700/1900kg | |||
| ACCESSORIES | |||||
| STANDARD ACCESSORIES | |||||
| 3-jaw(Φ250mm) & 4-(Φ315mm) | |||||
| Steady rest & follow rest | |||||
| Face plate | |||||
| Drive plate | |||||
| Thread-cutting dial | |||||
| Longitudinal touch stop | |||||
| Work lamp | |||||
| Coolant system | |||||
| Full-length splash guard | |||||
| Foot brake and brake ribbon | |||||
| Paddings | |||||
| Change gears | |||||
| Dead centre and centre sleeve | |||||
| Oil gun | |||||
| One whole set spanner | |||||
| Operation manual | |||||
| OPTIONAL ACCESSORIES | |||||
| Rapid travel | |||||
| Live centre(MT5) | |||||
| 2axis or 3axis Digital readouts(SINO) | |||||
| CE-conformity(Chuck guard,Toolpost guard and leadscrew guard) | |||||
| Magnetoelectrical brake | |||||
| Quick change tool post(USA or Europe type) | |||||
| Drill chuck set | |||||
| Taper cutting function | |||||
| Cutting tool holders set(7pcs or 9pcs) | |||||
