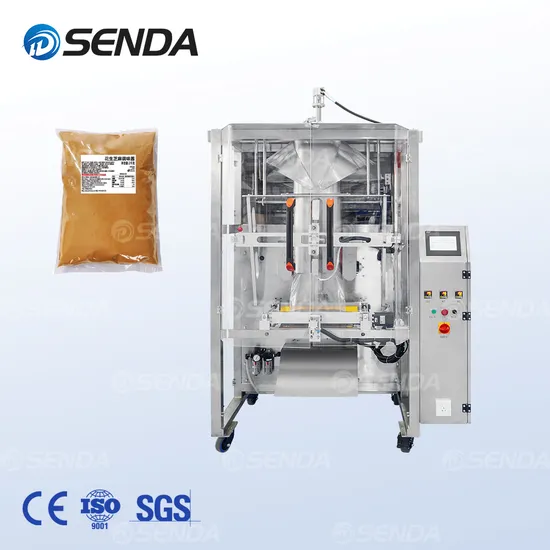

Sticky Sesame Paste Liquid Automatic Packaging Machine with Mixing Cylinder

Product Description

Automatic Liquid Vacuum Filling Machine for Egg Liquid/Coconut Milk/ Beef Tallow/Palm Oil /Detergent
Basic Info.

Model NO.	SD-620
Driven Type	Pneumatic
Packaging	Bag
Packaging scope	2-5KG
Product Name	Multi-Function Liquid packaging machine
Weighing Accuracy	1%
Packing Speed	5-8bags/min
Horizontal Sealing Driven System	Servo Motor
Gas Consumption	0.95m3/Min
Machine Weight	420KG
Optional Devices	Spray code/vacuum
HS Code	8422303090
Packaging Material	Film
Material Type	Liquid
Forming Function	Forming, Filling, Seal
Bag width	290mm
Bag length	150-450mm
Equipment size	1300*1000*2600
Power voltage	5.5KW 380V/220V
Consumables	PE/OPP/EVA/PA+PE
Origin	Jiangxi China
Air Consumption	0.8MPa 0.5m³/Min

Addition, modification Based on the standard configuration corresponding to the guiding quotation, the equipment
It is possible to add or modify special devices (such as inkjet, squeeze vacuum, coding, punching, etc.), as well as basic structures (such as conveyor belts, pumps, rack) configuration changes

Forming The plastic roll film is installed on the unwinding device, guided by the guide roller, and the plastic film is conveyed in the machine.
The shape of the bag is formed under the action of the former. At this time, the longitudinal seal seals the bag to the longitudinal opening, and the feeding device unloads the material.
The horizontal sealing roller then seals the horizontal opening and cuts it off. So far a packaging bag is formed.
Are you looking for a machine which can automatically pack 1KG-12KG Liquid products?Are you still looking for a packaging machine model with favorable price, high-quality service and cost-effective?
Our product is suitable for the packaging of liquid materials in the building materials industry and food industry. Building materials industry such as: liquid fertilizer, 108 glue, waterproof adhesive, 901 children's glue, waterproof emulsion, K11 waterproof, 606 glue, 801 environmental glue, etc.;
Food industry such as: purified water, coconut milk, egg liquid, sauce, chicken oil, etc.; liquid materials with fluidity and no large particles can be packaged
This machine adopts a high-precision spiral filling system, and the packaging difference is within 1% (subject to the product). Our operating systems are equipped with CIP for fully automatic cleaning of storage silos, screw filling pipes and discharge silos.
Just stick the packaging film, the machine will automatically form the bag, fill the material according to the set weight, print the production/expiration date/batch number and seal the bag. Functions such as: Nitrogen filling, bag hanging, hanging hole punching, vacuum
Jiangxi Senda Automation Equipment Co., Ltd. Was established in August 2012 and is located in Ganzhou Economic and Technological Development Zone, Jiangxi Province. Our company mainly produces automatic bag-type packaging machines, automatic bag-type vacuum packaging machines, powder packaging machines, liquid packaging machines, granule packaging machines, etc. It is an international enterprise integrating R&D, manufacturing, marketing and service.The company has a number of invention patents and utility model patents. Passed ISO9001, CE, SGS and other certifications. The company′s products sell well all over the country and exported to many countries and regions. It is a large-scale research and development institution in the same industry in China, with a complete production and manufacturing system and huge marketing services.

---
