Product Details
Product Description
Product Description
Product Schemes
Equipment Details
Items

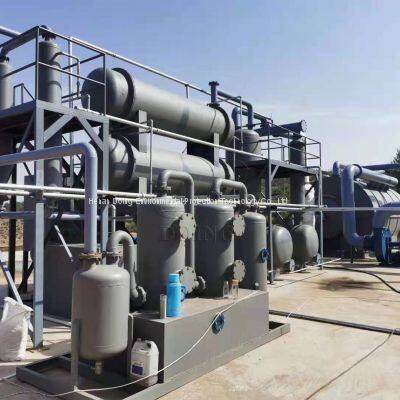

| Waste Pyrolysis Plant
|
Equipment type
| DY-100-6
| DY-1-10-12
| DY-1-15-50
|
Raw material
| Waste plastics, tyres
| Waste plastics, tyres
| Waste plastics, tyres
|
Structural form
| Horizontal rotation
| Horizontal rotation
| Horizontal rotation
|
24-hour Capacity
| 100kg-6 ton
| 10-12 ton
| 15-50ton
|
Oil yield
| 0.45-3.3ton
| 4.5 -7.2ton
| 6.7-30ton
|
Operating pressure
| Normal
| Normal
| Normal
|
Material of pyrolysis Reactor
| Q245R
| Q245R
| Q245R
|
Thickness of pyrolysis Reactor
| 16mm
| 16mm
| 16mm
|
Rotate speed of pyrolysis Reactor
| 0.4turn/minute
| 0.4turn/minute
| 0.4turn/minute
|
Total power
| 15KW
| 15KW
| 65KW
|
Mode of cooling
| Water cooling
| Water cooling
| Water cooling
|
Cooling area of condenser
| 100sqm
| 100sqm
| 100sqm
|
Kind of transmission
| Internal gear drive
| Internal gear drive
| Internal gear drive
|
Noise dB(A)
| ≤85
| ≤85
| ≤85
|
Size of Reactor(D×L)
| 2200×6000
| 2600×6600
| 2800×6600
|
Working form
| Intermittent operation
| Intermittent operation
| Intermittent operation
|
Delivery time
| 20days
| 20days
| 20days
|
Weight
| Depends on the Scales
| 32T
| 35T
|
Items
| Contents
|
Model
| DY-500KG, DY-1T, DY-5T, DY-10T, DY-15T, DY- 20T...
|
Raw material
| used motor oil, waste engine oil, tire pyrolysis oil, plastic pyrolysis oil
|
Structure form
| Vertical (easy cleaning and maintenance)
|
Heating method
| Indirect heating to prolong the machine service life
|
Operating pressure
| Constant pressure
|
Heating material
| Coal, charcoal, fuel gas, fuel oil
|
Average out-put oil rate
| 95%
|
Material of reactor
| 4 reactor with different material
|
Thickness of reactor
| 18mm
|
Mode of cooling
| Recycled water cooling
|
Power in total
| 20 Kw
|
Service life
| average 7 years
|
Land area
| 180 square meters
|
Equipment Advantages
Project Case
Customer Feedback
Company Profile
Our services
FAQ
Q: How much a waste to diesel plant?A: Different capacities of waste to diesel plants have different cost. And also different desgins of pyrolysis plants and distillations plant have different cost. But if you want to save some cost, our engineer also can design the most efficient machine solutions for you. To caculate detailed cost for your referrence , please contact us directly.
Q: How can I sell the tyre pyrolysis oil and plastic oil?A: The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel engine. Buy our equipment, users share a large network, this network has sold buy.
Q: How many countries your machine have been exported and installed?A: Our machinery have been sold to more than 100 countries and regions around the world, winning great praise and trust of our customers all over the world! For example, Italy, Romania, Macedonia, Albania, Estonia, Rusian, Egypt, Ethopia, Nigeria, Congo, Lebanon, Jordan, Pakistan, Kazakhstan, India, Tailand, Malaysia, Mexico, Panama, Guatemala, Aruba, Jamaica, Ecuador, Haiti, etc.Q: Can we visit your factory of pyrolysis plant ? And where is your factory?A: Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office is just need 30min. We are responsible to pick customer up. We have sample machine in our factory for your visiting. Welcome at any time!
>>
