Top 10 High Frequency 18000rpm Concrete Vibrator Factory

Product Description

TOP 10!! High frequency concrete vibrator 1500w~2300w
Product Uses

High frequency concrete vibrator is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket,crowded reinforcing stell bar net coagulation dirt wall and major and medium small architectural engineering. It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.
Product Description

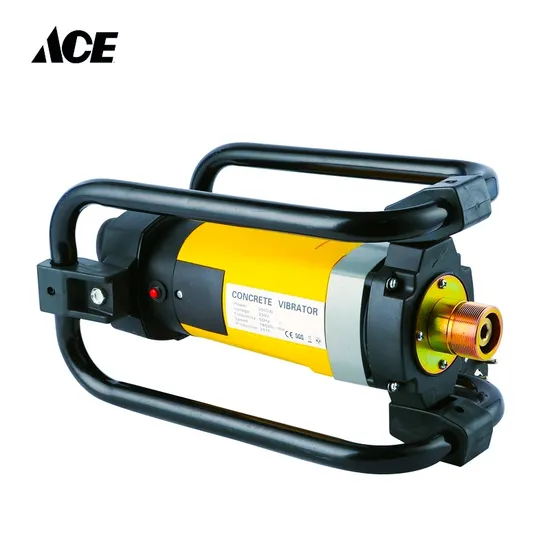

1.The ZID Series High frequency concrete vibrator is an immersion type vibrator. During operation,the vibrating poker that is attached to the vibrator has to be immersed into the concrete .The poker has an eccentric vibrating element inside it .
2. The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration . Via the flexible tube,the vibrator transmits the vibration to the poker via the flexible tube .It is spun as much as 12000 times per minute,which makes it easy to cause resonance with the poured concrete .
3. The lightweight vibrator only weights to 5.2kgs to 6kgs,giving ease of operation .It is one of the most widely used products,know for its low noise,energy efficiency, reliable functioning,high safety,and good vibrating performance.

Specification Date

Match Vibrator shaft :

Item	Concrete vibrator shaft
Model	¢(mm)	ZX35	ZX-38	ZX-45	ZX-50	ZX-60	ZX-70
Diameter of head	¢(mm)	35	38	45	50	50	70
Length of head	L (mm)	380	420	420	480	410	450
Vibrating Frequency	(HZ)	183	185	185	200	200	200
Vibrating Ampitude	(mm)	0.91	1	1.2	1.15	1.15	1.35
Dia of flexiable hose	D(mm)	30	30	32	36	36	36
Diaof flexiable shaft	D(mm)	10	10	10	13	13	13
Weight (6mtr)	(kg)	14	15	16	20	21	24
packing size	CM	75*75*5.5
