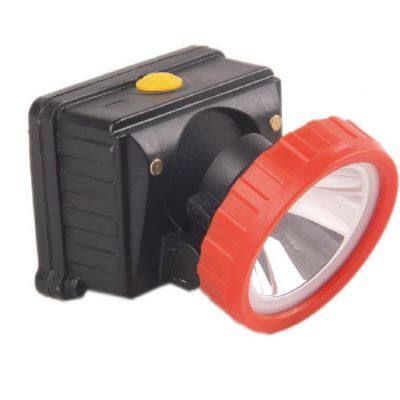

KL3LM(A) Intrinsically Safe Integrated Miner's Cap Lamp

Product Details

Product Description

Product Description
KL3LM(A) Intrinsically Safe Integrated Miner's Cap LampProduct Description
Main characteristics
1. LED constant current driving mode, it ensures the illuminance keep the same during the lighting.
2. Equipped with built-in micro controller and multiple safety protection circuit, with intelligent management of charge-discharge process, it is safe and reliable.
3. It is dual light source design, which can be one-key switched in five modes: bright light, low light, auxiliary light, strobe and SOS.
4. It has the characteristics of battery power indication, freely adjusting the angle of lamp head, and various ways of wearing.

Item			Specification
Battery type			Li-ion
Rated capacity			3Ah
Rated voltage			3.7V
Lighting time			>12h
Main light source	Rated current		200mA±10mA
	Maximum illuminance( at 1m away from lamp)	When lighting begins	≥4500lx
		After lighting for 11h
Cycle life of battery			≥500 cycles
Charging time			≤6h
Explosion proof type			Ex ia I Ma
Protection grade			IP65
Dimensions			84×68×73mm
Weight			≤200g

Matching information

Standard fittings

KZC1C charger, headband

Detailed Photos
Packaging & Shipping
Our service
Company Profile
With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 26 years' experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We trade as "GOKANG" brand (former brand, since1995) and "ASTTAR" brand (since 2017).
We mainly export products of three categories:
1. Mining underground rescue product
2. Mining explosion-proof lamp
3. Mining explosion-proof instrument and meter
Our main products:
1. Mining self-rescuer
2. LED miner's cap lamp
3. LED Flame-proof laneway lamp
4. Mechanical and electronic anemometer
5. Isolated positive pressure oxygen breathing apparatus
6. Automatic resuscitator
7. Optical interference type methane detector
8. Portable multi-parameter gas detector
9. Infrared thermometer
10. Laser distance meter
11. Laser guider
