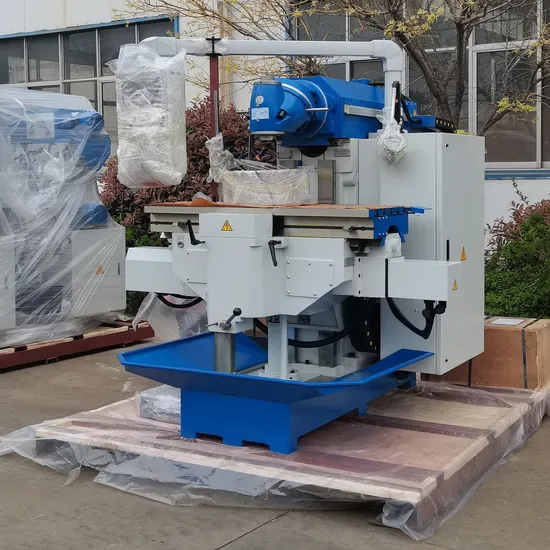

X5750 Heavy Duty Universal Manual Milling Machine with Digital Readout

Product Description

X5750 Heavy Duty Universal Manual Milling Machine with Digital Readout
Product Description
√ universal 360° swivel head can process any angle surface
√ 27 speeds spindle, gearbox driven directly, wide speed range for powerful milling
√ power driven sliding ram, very long travel in Y-axis
√ 500x2000 mm large work-table, long travel
√ double-supporting-column design, 1800kg heavy load capacity
√ table feeding is driven by 3 independent servo motors, high accuracy, low noise, can achieve 3-axis synchronous feeding
√ 3-axis ball screws for good precise
√ 3-axis E-handwheels on control panel, manual feeding is easy and precise
√ scientific circult design for easy maintenance
Product Parameters

Items	X5746	X5750	X5750A
Working area
Table size	1235x460mm	1600x500mm	2000x500mm
T-slot (width x No. x pitch)	18mmx5x80mm
Max. load of table	800kg	1800kg
Distance from spindle nose to table surface	58-508mm	50-550mm
Distance from spindle center line to column	20-670mm	45-745mm
Travel
Longitudinal travel of X axis	900mm	1200mm	1400mm
Cross travel of Y axis	650mm	700mm	700mm
Vertical travel of Z axis	450mm	500mm	500mm
Spindle
Swivel angle of milling head	360°	360°	360°
Spindle taper	ISO40	ISO50	ISO50
Vertical spindle speed /step	30-2050rpm
Vertical spindle speed step	27 steps
Main motor power	5.5kW	7.5kW
Feed
Feed speed and step of X/Y axis	10-1000mm/min	10-1000mm/min	10-1000mm/min
Feed speed and step of Z axis	6-640mm/min	5-500mm/min	5-500mm/min
Rapid traverse of X/Y axis	2200mm/min
Rapid traverse of Z axis	1100 mm/min
AC servo motor torque of X/Y/Z axis	X/Y:18Nm Z:27Nm
Others
Overall dimension	2527x2035x1990mm	2625x2460x2080mm	2625x2860x2080mm
Net weight	3600kg	4200kg	4500kg

Standard Configuration

No.	Item	Specification
1	lubrication system	-
2	water cooling system with spray nozzle	-
3	work lamp	-
4	draw bar	-
5	milling chuck set	ISO50 (or ISO40)
6	reducer sleeve	ISO50-Φ40 (or ISO40-Φ32)
7	tools & metallic tool box	-

Optional Configuration
Packaging & Shipping
Delivery time: generally 45 days production time after confirmation of order
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Packing size: 2650 x 2200 x 2250mm (L / W / H), can be delivered in 20GP container
Certifications
Products are strictly according to Europe standard, with CE certificate

Company Hot Products Link

FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.
Other payment terms are also acceptable after discussion.
3. What is the trade terms ?
Usually is FOB.
Others like CIF, CFR, EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)
5. How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.
Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.

---
