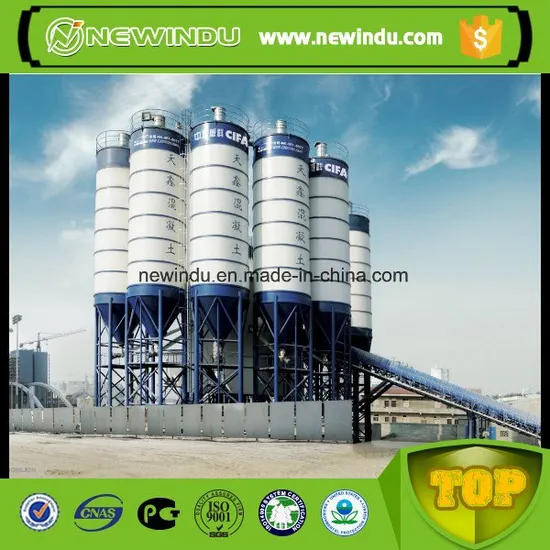

Concrete batching plant is widely used for large and medium-sized construction work and infrastructure projects, such as commercial and residential properties, road construction, commercial concrete supply, etc. It is an ideal choice for the production of high-quality concrete with a large amount of demand.
The capacity of the concrete batching plant can be 25/35/50/75 m3/h, and the capacity of belt conveyor type concrete batching plant can be 60/90/120/180/240 m3/h.
Model HZS75
| Theoretical rated output (m³/h) | 58 |
| Discharge height (m) | 19 |
| Mixer | MPC725 |
| Theoretical producting periods (s) | 78 |
| Aggregate storage (m³) | 3×16 |
| Max. weighing value of belt balance (kg) | 30856 |
| Max. weighing value of bucket elevator (kg) | 389 |
| The conveying capacity of screw conveyor (t/h) | 48 |
| Total power (kW) | 100 |
| Batching range and accuracy of aggregate (kg) | (0-2000)±2% |
| Batching range and accuracy of cement (kg) | (0-450)±1% |
| Batching range and accuracy of water (kg) | (0-200)±1% |
| Batching range and accuracy of additive (liquid) (kg) | (0-15)±1% |
