Wide Angle Mjpeg 1megapixel HD Camera USB for Industrial Camera Module USB Machine Vision

Product Description

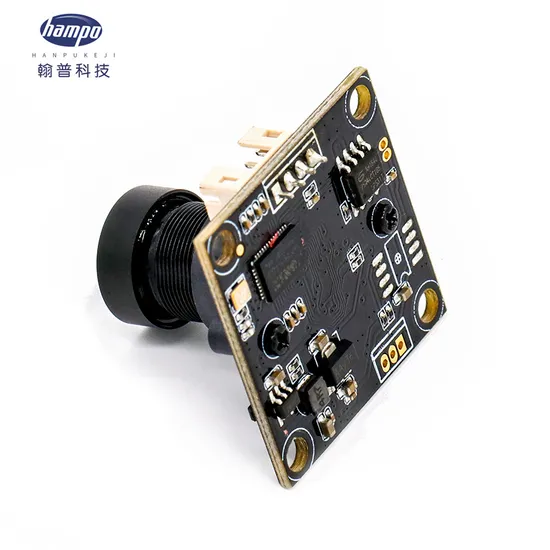

Description: 003-0255 is a USB 2.0 Camera Module adopts 1/4" 1296*742P sensor GC1024, assembled with a low distortion M12 lens, the FOV=125°, supper wide of angle view. This 1MP USB camera module support H.264 high compression technology,H.264 could provides continuous, smooth, high-quality images, under the condition of the same image quality, the compression ratio of H.264 is more than 2 times that of MPEG-2, and 1.5 ~ 2 times that of MPEG-4. Compatible with most OS and popular Apps: Win XP/ Vista /Win7/Win8 Linux with UVC.
Specifications:

Items	Parameters
SENSOR	GC1024
Lens Size	1/4"
Maximum Pixels	1 mega
Maximum Effective Resolution	1296(H)*742(V)
Data Format	YUY2/MJPG/H.264
Pixel Size	3.4um*3.4um
Dynamic Range	/
Lens	FOV :D=125°
	Optical length :18.45MM
	lens construction:4G
	mount :M12*P0.5mm
Focusing	Fixed focus)
Frame Rate	30fps
Auto Control	Saturation,Contrast, Acutance,White balance,Exposure
Audio	/
Voltage	DC 5V
Working Current	MAX 300mA
USB Connector	USB2.0
Storage Temperature	-20-70ºC
Working Temperature	Change with environmental temperature
System Compatibility	1,Windows XP(SP2,SP3),Vista ,7,8,10
	2,Linux or OS with UVC driver

Camera
Sensor: GC1024
Sensor Size: 1/4"
Resolution: 1296*742
Output: MJPC/YUV/H.264
Frame Rate: 30fps

Lens
FOV: D=125°
Construction: 4G
Mount: M12*P0.5mm
Power
Power Supply: DC 5V
Working Current: MAX 300mA

Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 32*32mm
Key Features: 1. Ultra Wide View of Angle:
This camera module has a very wide view of angle at FOV 125°, could capture more into your image.

2. 720P HD USB Camera Module:
The camera's resolution is 1 Mega Pixel(1296*742P) at 30fps with 1/4'' GC1024 CMOS sensor. High quality and stable video image for you.

3. Plug and Play & UVC:
Free drive 2 megapixel USB board module with USB2.0 cable, easy to set up, just plug & play, compatible with Windows XP/Vista/Win 7/8/10, Linux or OS with UVC, Mac and Android systems, also support OTG.

4. Support H.264:
Camera module with advanced H.264 encoding compresses a digital video file so that it only occupies one-twentieth the space of MPEG to deliver the same quality video. Enjoy stunning HD video with impressive video performance and faster transmission speed.
APPLICATIONS
Robot Visual: Industrial Equipment
Security: Monitoring Capture
Video Conference
ATM
...
Company Profile:
Dongguan Hampo Electronic Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo has buildings 58 and 26 as production base, covering 13,000 square meters. We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. Support OEM and ODM service.
