Welcome to visit

Zl-250 Pharmaceutical Rotary Mixer Granulator

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
ZL
Type
Rotary Granulator
Object
Food,Medicine,Chemical
Material
Stainless Steel
Size
Medium
Certification
GS, CE
Condition
New
Name
Pharmaceutical Rotary Mixer Granulator
Usage
Widely Use Granulator
Factory Certificate
ISO9001:2008
Granulating Size(mm)
Customized
Transport Package
Wooden Box
Specification
SGS
Trademark
HANYOO
Origin
Nanjing
HS Code
842240000
Production Capacity
200 Set Per Year

Product Description

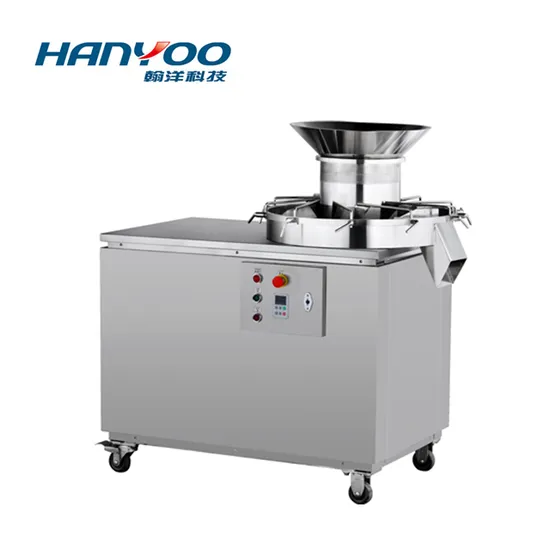

ZL-250 Pharmaceutical Rotary Mixer Granulator
APPLICATION
The machine is widely applied in such industries as medicine, food, medicinal granules, chemical industry and solid beverage. It can make mixed materials into desired granules or smash waste tablets and dried cubes and roll them into granules. It is especially suitable for highly viscous materials. The parts in the machine that contact materials are made of stainless steel. It has beautiful appearance, reasonable structure and high granule forming efficiency. In addition, the granules are beautiful. It discharges the granules automatically, so as to avoid damage caused by manual discharging. It is suitable for line production. Through mechanical rotation, the roller blade and the pressing vane rotate in opposite directions. The pressing vane is placed at a certain angle to push the materials downward to the roller blade, then the large- - angle helical vane on the roller blade pushes the materials to the sieve wall, and finally, the blade squeezes the materials into granules through the sieve pores.
Technical Parameter
Model ZL-250 ZL-300
Roller blade size(L) 250 300
Granulating size (mm) 2-2.2(Customized) 1.8-2.5(Customized)
Production capacity (pc/h) 100-200 140-400
motorpower(kw) 3 4
Overall size (mm) 700*540*1300 880*640*1300
Weight (kg) 350 400
