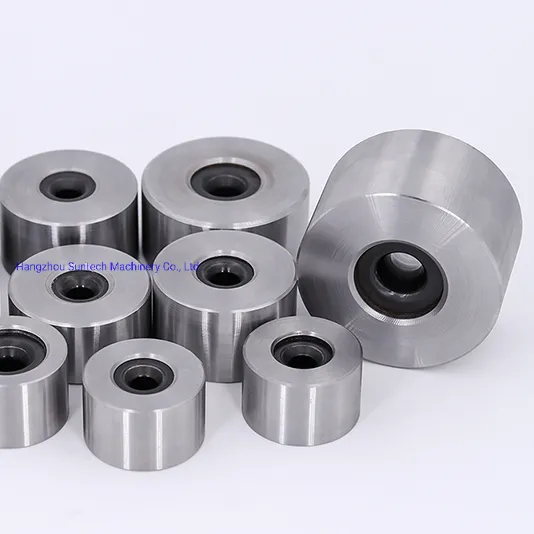

Steel Wire Drawing Dies PCD Wire Drawing Die

Product Description

1. Applycation: used in wire drawing machine for drawing wire
2. Material: Steel
3. Coating: CVD nano diamondd coating
4. Precision:
4.1 Die core: Rough drawing (ΦΦ2.2mm-Φ5.5mm): -0.02mm-+0.01mm (the last one is ±0.01mm) Fine drawing (Φ0.8mm-Φ2.2mm): ±0.01mm
4.2 Die case: -0.05mm 4.3 Roundness error: ≤0.005 4.4 Compression angle: Φ1.2mm or less: 10°±2° Φ1.2mm-Φ2.0mm: 12°±2° Φ2.0mm-Φ5.0mm: 14°±2°
Polycrystalline diamond dies are available in various grain sizes, both in supported and unsupported configurations. PCD dies provide uniform hardness and extended wear resistance in all directions.
Polycrystalline diamond (PCD) is a kind of artificially sintered diamond,which can be used in all wet drawing and dry drawing processes,polycrystalline diamond high temperature pressing and alloy bond sintering.There are three types of polycrystalline diamond embryo:non reinforced ring type,reinforced ring type and heat stable setting type.
Polycrystalline diamond wire drawing die is the longest die life of all materials,which can provide the highest production efficiency and reduce downtime.It is suitable for all applications from large drawing to ultra-fine drawing,with predictable wire surface quality.

TYPE	DIE SIZE(mm)	TOLERANCE	CASE DIMENSION
PCD DIE	D6	±0.002	D30X15
PCD DIE	D24	±0.002	D42X30
PCD DIE	D36	±0.002	D70X35

---
