Cost-Effective Precision Vertical Milling Machine with Advanced Features, CNC Machine, Milling

Product Description

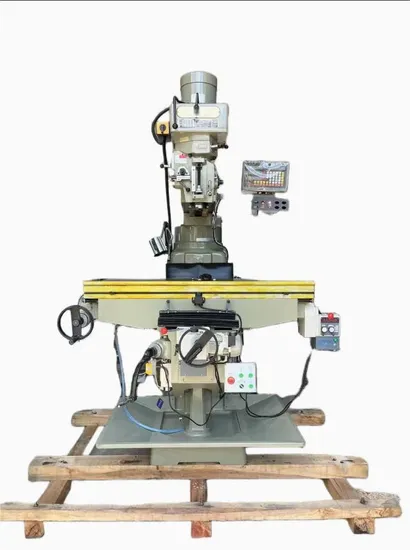

Introducing the sophisticated 4s Vertical Lifting Table Milling Machine, a top-tier metal milling marvel meticulously crafted in Taiwan. This cutting-edge machine is engineered to provide unmatched precision and efficiency, setting a new standard in metalworking excellence.
Product Description
Mechanical CharacteristicExpertly crafted from Meehanna cast iron, this exceptional machine guarantees outstanding rigidity and stability. It is designed to maintain its form without deformation, ensuring robust and consistent performance that professionals can rely upon.The spindle, reinforced with a precision bearing combination, delivers extraordinary cutting force and exceptional accuracy. This empowers the machine with advanced machining capabilities that are truly second to none.Boasting an innovative inverted hanging design, the end milling head provides remarkable precision, seamless operation, and effortless braking. Customizable solutions are available for clients seeking tailor-made features to meet specific needs.The three-axis screw nuts are constructed from superior phosphorus meter copper, providing outstanding wear resistance and a significantly prolonged lifespan.Enhanced through high-frequency annealing treatment, the XY shaft slide offers remarkable resistance to wear, thereby greatly extending operational longevity.An integrated lubrication system meticulously ensures smooth sliding operations, optimizing machine performance to the highest standards.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed is fundamental, having a direct impact on processing efficiency and cutting prowess. Higher speeds amplify cutting strength, improve surface finish quality, and minimize residual stress on components.
Milling Machine Cutting Speed Cutting speed is critical for determining processing pace and quality. Optimal speed adjustments, based on material hardness, cutter composition, and machine specifications, ensure superior machining outcomes. Milling Machine Processing Accuracy Processing accuracy is a pivotal performance indicator affecting machining excellence and component quality. It is shaped by cutting force, rigidity of both machine and tool, workpiece clamping precision, and initial machine tool deviations. Milling Machine Precision Stability Precision stability guarantees consistent machine accuracy during operations. It is influenced by initial tool deviations, machine deformation, and tool wear, playing a key role in preserving quality standards.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
