Smart Door/Window Contact Magnetic Switch for Hotel Occupancy System

Product Description

Banner

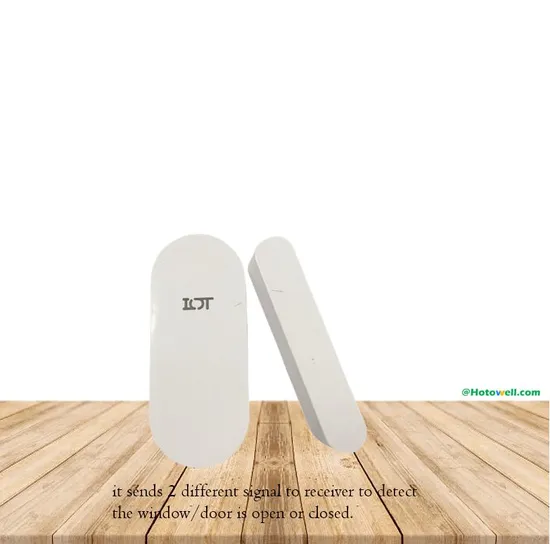

Product Description Wireless Window/Door Contact Switch For Smart Home or Hotel Project Door Sensor And Receiver
Model: HTW-YM-LOT Power voltage:DC3V (AAA* 2PCS)
Quiescent current: ≤8uA
Working current: ≤10mA
Working frequency: 433.92Mhz
Working indicator: Red LED
Low battery: blue LED, blink every 2s
Low battery: ≤4.4V ±5%.
Signal coding based on chip EV1527. Contact Closed: code 1010 Contact Open:Code 0111 i.e. it sends 2 different signal to receiver
to detect the window/door is open or closed.
*Recommend match with Receiver: HTW-RV-U22 Model:HTW-RV-U22 * Power voltage:100-240Vac, 50/60Hz
* Output: Non-Voltage dry contact
* Quiescent current: ≤7mA
* Working frequency: 433.92Mhz
* Reed Switch instead of Relay optional
* Effective Distance:50M without walls
* Size: 88 x 38 x 22mm
Packing
certifiates

Company Profile
FAQ Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
Welcome to contact us
Hotowell International Co.,Limited

Add:Room 1406-2, No.11 Duiying Road, jimei district, Xiamen, 361021, China
