High Speed Automatic Shear Cut to Length Machine Cut-to-Length Lines

US$17,000.00
1 Set
US$13,000.00
2+ Sets

Basic Info.

Model NO.
Cut to Length Machine
Tile Type
Colored Steel
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof
Screen
Text Screen /Touch Screen
Feature
High Efficiency Easy Operate
Control Box Language
Add Customer Request Language
Voltage
380V
Color
Customer Choice
Transport Package
by Sea
Specification
2T
Trademark
ZHONGHENG
Origin
Hebei, China
Production Capacity
15m/Min

Packaging & Delivery

Package Size
400.00cm * 150.00cm * 150.00cm
Package Gross Weight
2500.000kg

Product Description

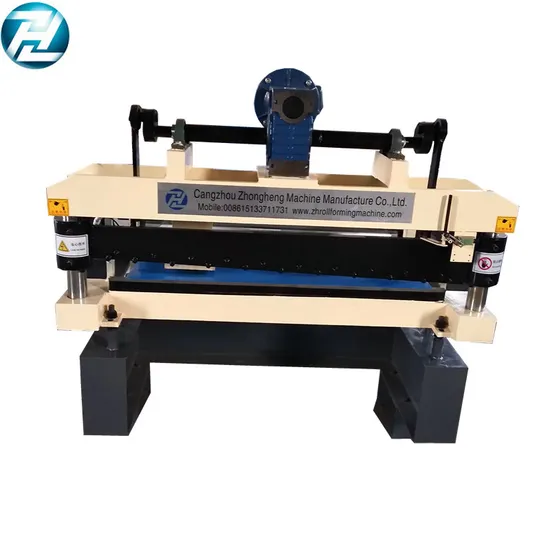

Cut to length machine leveling machine
Machine Specifications
1.
Power
requirement

Type
380v/3ph/50hz



Main Motor power
5.5kw



Cutter power
4kw

2.
Forming speed(m/min)
25
Not include the time of cutting
3.
Forming stations
upper5buttom 6
Depend on actual design
4.
Thickness of structure
16mm

5.
Forming shaft diameter(mm)
90

6.
Chains
1 inch

7.
Sleeve
galvanized pipe with color coating

8.
Type of cutting
Roll formed and length-set cutting

9.
Install dimension(depend on the final design)
3m×1.5m×1.5m
Without panel length
10.
Total weight (Approx)
2.5T
Depend on final design
11.
Screen
Text screen /touch screen

Usage :Accessories of the roll forming machine.
The usgae is leveling and cutting .

Packaging & Shipping
1.This cut to length machine match with hydraulic decoiler ,it can be fit in one 20' container with hydraulic decoiler
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

Company Profile
After-sale service of stud and track roll forming machine
1. The warranty of roll forming machine is one year .after the client receives the machine. Within the one year.
we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Delivery time: about 40 workdays
2. Port of loading: port of Tianjin
3. Type of payment: by T/T or by L/C
