China Factory Hot Sale Dry Cement Mortar Powder Gypsum Twin Shaft Mixer

US$6,000.00 1 Set (MOQ)

Basic Info.

Model NO.
WZL
Capacity
10-14m�/h
Certification
CE, ISO
Condition
New
Main Material
Carbon Steel
Mixing Capacity
1000L & Above
Mixing Drum Shape
Double Cone
Power Source
Electric
Safety Features
Emergency Stop Button
Stirring Type
Spiral
Warranty
1 year
Working
Shear Mixer
Mix Material
Granules and Powder
Working Capacity(Kg)
200-12000kg
Power(Kw)
5.5-150kw
Working Capacity(M3)
0.12-12m3
Transport Package
Seaworthy Package
Specification
2800x3200x1950mm
Trademark
QuanHua Mix
Origin
China
HS Code
84743100
Production Capacity
1000set/Month

Packaging & Delivery

Package Size
300.00cm * 350.00cm * 200.00cm
Package Gross Weight
5000.000kg

Product Description

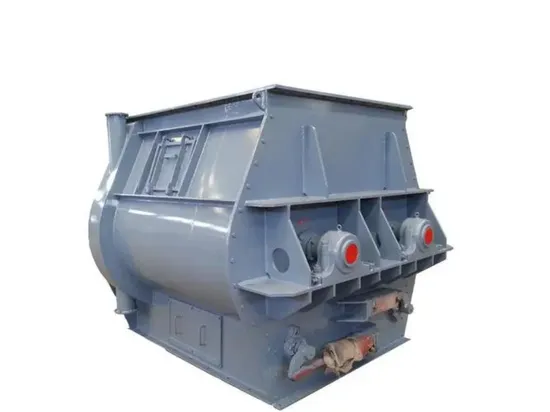

5-50T/H WZ No Gravity Mixer Machine for Mixing Cement/Sand/Dry Mortar
Product Description
(Mixer on our dry mix plant)
Working Principle for No Gravity Mixer:
Double shaft paddle mixer is a batch mixer with two counter-rotating shaft that are equipped with ten paddles, they overlap each other following the driven unit, Blades generate centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant no-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed in the end.
Working Characteristic for No Gravity Mixer Machine:
Widely Usage for No Gravity Mixer Machine:
WZ Series Double shaft mixer is widely applied in dry mortar mixer production line ,powder mixer line chemical, biological, and construction material production.It can mix powder, mortar ,granule, and fiber with evenly and efficiently .
Technical Parameter for No Gravity Mixer Machine:
specification WZL-0.3 WZL-0.5 WZL-1 WZL-2 WZL-3 WZL-4 WZL-6 WZL-10 WZL-15 WZL-20
working capacity(m3) 0.18 0.3 0.6 1.2 1.8 2.4 3.6 6 9 12
working capacity(kg) 200 300 600 1200 1800 2500 3600 6000 9000 12000
speed(RPM) 60 60 53 43 43 35 35 29 22 18
power(KW) 5.5 7.5 11 22 30 37 44 60 90 150
weight 650 900 1300 2300 2800 3400 5000 6000 8500 12000
length 1600 1800 2400 2800 3200 3400 3700 4000 4600 5200
width 850 1000 1400 1700 1950 2000 2200 2600 3100 3500
height 950 1100 1800 1950 2000 2000 2300 2600 2800 3000

OUR WORKSHOP
QUAN HUA Group headquartered is located in Jinan, the city of springs, it is a large-scale enterprise integrating production, scientific research, sales, import and export trade. The company was established in 2003. The factory covers an area of 200,000 square meters and a building area of 120,000 square meters, with 300 employees, It is now constructing an overall framework ,three major industries is mainly of construction machinery, supplemented are installation and construction.
OUR CERFTICIATE
OUR CLIENTS
Quality Guarantee for No Gravity Mixer Machine :
Our no gravity double shaft mixer machine could use 5-7 years unless the easier wear parts .So pls don't hesitate to contact us if you have any requirement .Then we will suggest you with the best model of mixer machine according to the usage .
For more details,pls don't heistate to contact us asap!
