Advanced Automatic Napkin Paper Folding and Embossing Machine

Product Description

Automatic napkin folding machine
Product Description
ENHANCED PRODUCT DESCRIPTION:
Automatic napkin folding machine with Advanced Plastic Type Transfer System for Maximum Efficiency Ready to embark on a lucrative venture in facial tissue or cotton towel production? Discover the essential machinery you need to succeed!
♦FeaturesIntegrated embossing,printing(optional), automaticchoosing, etc.
♦Value: it solves the problems of low manual choosing efficiency andinaccuratechoosing sheets. Accurate choosing without errors avoidcustomer complaints ♦Main parameters: ain parameters: Production speed: maximum1.500 sheets/minute
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products. Remarkable Features: 1.Adopts professional embossing roller.2.When the raw paper is ready , it will be sent to the embossing unit then printing unit(Optional order).3.Machine will stop automatically if the paper jammed the folding roll.4.With steel to rubber embossing unit, embossing can be steel to wool roller, steel roller or rubber roller( choose one).5.The gap between two folding&cutting rollers can be adjustable according to different plies and GSM.6.Steel to steel embossing roller can be added on machine.7.Engraved embosser can be added on machine. Vivid Sample Picture:
Comprehensive Machine Information:
Key Technical Parameters:

Max.width of raw paper	200mm Other sizes to be specified
Max.Outer Diameter of raw paper	φ1200mm
Open Size Of Finished Product	200*200mm Other sizes to be specified
Machine Speed	700-900pcs/min
Max.speed	1500pcs/min
Raw paper Material	1-3 plies tissue paper with 18-25GSM each ply
Folding style	1/4fold,1/6fold (Other folding style need to be ordered)
Embossing Unit	Steel to rubber/Steel to wool/Steel to Steel roller(choose one)
Counter	Electronic, pneumatic
Program Control	PLC(Delta/Siemens)
Speed Control	Variable frequency speed regulating
Power Supply	380v 50Hz
Net weight	1100kg
Dimensions	3600×1500×1800 mm
Embossing Heater (optional)	Power: 1kw / 220V
Embossing Roller working temperature	60-80ºC

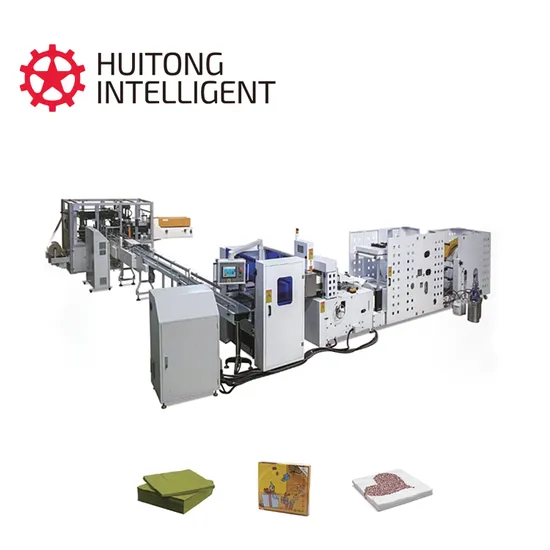

Captivating Machine Picture:
Insightful Factory Information:
CERTIFICATE:
Exhibiton:

---
