Mini Metal Drill Press Machine Z4120g Z4125g Z4132g

Product Description

Product Description
Technical parameter :
Feature :
Attractive, elegant, pleasing design
Reasonable structure, high rigidity, high strength
Long spindle travel, wide machining range;

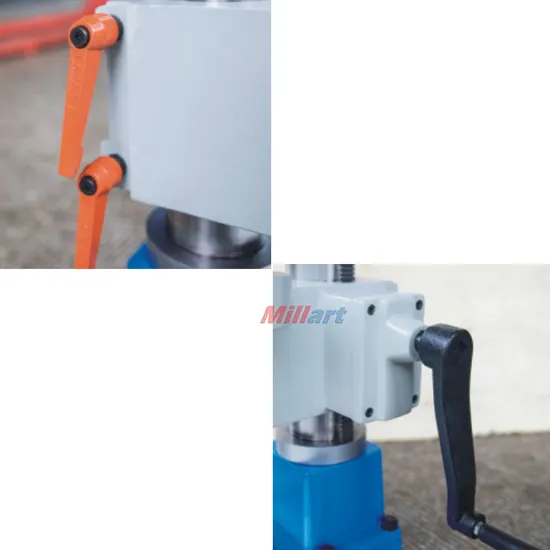

Workable can rise and down by rack/handle, 360 degree rotation , easy to
operate and mechanical advantage:
Multi-functional, with tapping switch, u type chuck guard, belt cover with
door limit switch , available with optional multi-spindle attachment
Spindle head, worktable, column and base use high quality casting processed
by aging treatment, stability and durable in use
Spindle, spline sleeve gear shaft processed by heat treatment and hardened
Technical parameter :

Model		Z4132G	Z4125G	Z4120G
Max. Drilling capacity	mm	32(steel)	25(steel)	20(steel)
Max. Tapping capacity	mm	M24 M20	M20/M16	M20/M16
Diameter of column	mm	100	100	85
Spindle travel	mm	150	150	135
Distance spindle axis to column line	mm	265	265	260
Max. Distance spindle nose to table	mm	390	390	366
Max. Distance spindle nose to base	mm	745	745	678
Spindle taper		MT3	MT3	MT2
Spindle speeds range	r/min	280~1875	280~1875	280~1875
Spindle speeds series		5	5	5
Dimension of worktable surface	mm	380x400	380x400	300x320
Dimension of base	mm	645x470	645x470	376x566
Overall height	mm	1370	1370	1245
Motor	kw	1.5(4p)	1.5(4p)	1.1
Net weight	kg	225	225	170
Packing dimension	mm	1040x600x1510	1040x600x1510	990x560x1400

Sandard accessories:
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice
