Basic Info.
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Drive Type
Passive Driven
Arbor Configuration
Independent Tilting Disc Passive Rotation
Material
High Strength Alloy Steel Disc
Disc Angle
Adjustable Angle
Applicable Soil Types
Clay, Sandy Soil, Hard Soil, etc.
Field Condition
Dry Land, Grassland, Orchards, Large Farms
Transport Package
Iron Frame/Wooden Box
Specification
265*120*155cm
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
265.00cm * 120.00cm * 155.00cm
Package Gross Weight
420.000kg
Product Description
Product Description

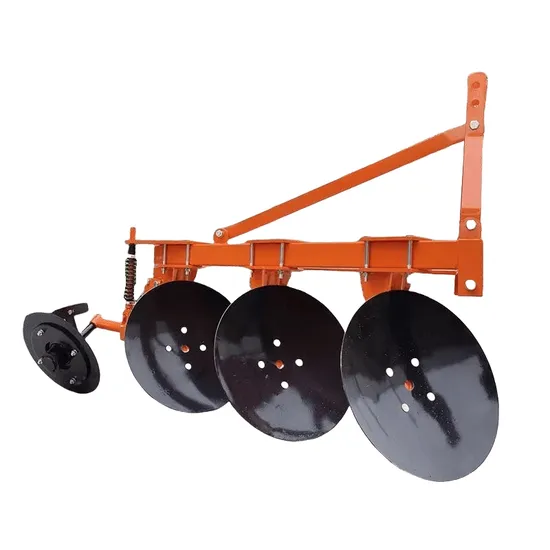

Disc Plow uses high-strength alloy steel discs, which are durable and designed for efficient tillage and soil crushing. Compared with traditional plows, disc plows are less likely to get clogged during operation and can adapt more smoothly to different soil conditions, including clay, sandy soil, hard soil and weedy farmland. Whether it is dry fields or grasslands, operations can be easily completed to improve farmland productivity.
Product Parameters
| 1LY(T)-25 | |
| Type and specification | 1LY(T)-325 | 1LY(T)-425 | 1LY(T)-525 | 1LY(T)-625 |
| Working width(m) | 0.75 | 1 | 1.25 | 1.5 |
| Workingdepth(mm) | 250-300 |
| No.ofdisc(pc) | 3 | 4 | 5 | 6 |
| Dia of disc(mm) | 660mm |
| Weight(kg) | 420 | 480 | 580 | 620 |
| Linkage | three point hitch | |
| Matchedpower(hp) | 55-70 | 80-90 | 100-120 | 120-160 |
Product Features
1. High-strength discs, wear-resistant and durable - made of high-quality alloy steel, the discs have high hardness and long life, and can adapt to complex terrain.
2. Strong tillage ability - suitable for deep tillage operations, can effectively cut the soil, improve soil permeability, and promote crop growth.
3. Efficient and non-stuck soil - reasonable design to avoid soil and weed accumulation during operation and improve operation fluency.
4. Suitable for a variety of tractors - standard 3-point suspension design, compatible with tractors of 50-100HP and above, simple installation and convenient use.
5. Low maintenance cost - Sturdy structure, easy to adjust and maintain, reducing subsequent use costs.
Why choose our disc plow?
1.Professional manufacturing - With many years of experience in agricultural machinery production, quality is guaranteed.
2.Export quality - Products meet international standards, have been exported to many countries, and are deeply trusted by farmers.
3.High cost performance - Direct selling price, no middlemen to make a profit, allowing you to buy high-quality agricultural machinery at a more affordable price.
>>
