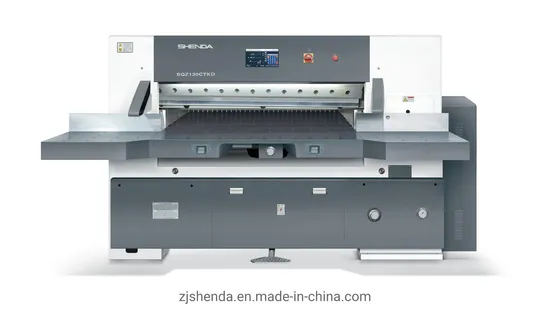

1300 Automatic Computerizd Paper Cutter Machine

Product Description

THE SYSTEM OF COMPUTER:
1. The displaying panel use 7.5 inch screen, you can adjust the color by yourself.
2. They have the high quality colors(25600), their storage can reach 170 groups,every group have 250 cuts, Its storage time can reach 300,000 hours.
3. The multi-language operating interface, such as Chinese,English,Spanish,Portuguese,French,Arabic,Russia...
4. It has luminous shortcut key so as to ensure the hight stability.
THE APPARATUS CONTROLLED SYSTEM:
1. Adopts Switzerland ABB,France SCHNEIDER,Japan OMRON.
2. Servo motor is from SHENZHEN INVET .
3. Air pump is from ZHEJIANG SENSEN
THE PAPER PUSHER CONTROLLED SYSTEM:
1. Ordinary Roller ball lead screw: TBI
2. Double rail guide way: TBI
THE HYDRAULIC SYSTEM:
1.ISO approved hydraulic units.
THE SAFETY PROTECTED SYSTEM:
1. 1. Extensible and precise infrared protective device from Shanghai Zhonghu photocell Control which reaches CE standard.
2. Blade-Replacement Device with safety and convenience.
3. Air cushion and chromeplating platform of photoelectricity protective device.
4. Underlay cutter frame.
5. The closed paper pusher frame.
6. Machine lock,safety bolting,the safety button and light grid.
7.The driving cutting part uses worm .
THE ACCESSORY WITH MACHINE:
1. Tool box
2. Manual book
3. Operational CD
4. Guarantee sheet(details in contract)
MAIN SPECIFICATION:

MODEL	SQZ-130CT KD
Cutting width(mm)	1300
Max.cutting height(mm) (Without auxiliary panel )	130
Max.cutting length(mm)	1300
Main motor power(kw)	4
Net weight(kg)	3700
Width with sideway(mm)	2800
Without sideway(mm)	2450
Machine lenght	2580
Machine height	1560
Front table length(mm)	735
Table height(mm)	900
Clamp pressure min(dan/bs)	150
Max(dan/bs)	4500
Knife thickness(mm)	12.7
Grinding reserve(mm)	30
Without false clamp(mm)	25
With false clamp(mm)	90
Cutting speed(mm)	45
Voltage(three-phase)(v)	361-339
Packing size(L*W*H)(mm)	2750*1400*1910

---
