Basic Info.
Paper Thickness
Thin Paper
Width
1575,1760,1880,2500,2800
Working Speed
150-200m/Min
Transport Package
Wooden Packing
Production Capacity
1500 Sets/Year
Product Description

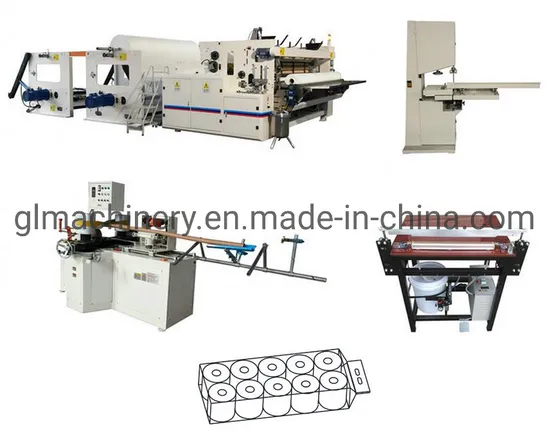

Automatic trimming and perforating toilet paper rewinder machine
PRODUCTION DESCRIPTION
Automatic electronic brake,sample,high efficiency,sealing and trimming,PLC,frenquency control,independent operation,adjustable.
Specifications
1 .Paper grades: toilet paper, facial tissue, paper napkin
2. Grammage: 13-30g/m3
3. Working speed:0-200m/min
| Model | 1575 | 1760 | 1880 | 2500 | 2800 |
| Raw paper width | 1575mm | 2000mm | 2100mm | 2400mm | 2850mm |
| Raw paper diameter | Φ1100mm(other specification can be appointed) |
| Raw paper core diameter | Φ76.2mm(other specification can be appointed) |
| Parameter setting | HMI |
| Programming control | PLC |
| Embossing | no embossing, single embossing, double embossing, steel to steel embossing(to be ordered) |
| Embossing bottom roller | felted roller, woolen roller, rubber roller, steel roller(to be ordered) |
| Maximum speed | 180m/min |
| Final product diameter | 90mm-135mm (other specification can be appointed) |
| Punching | Helix knife 2p punching |
| Finished product OD | 25-50mm |
| Power | 4KW-15KW |
| Side pressing | independent pneumatic(additional order) |
| Unreeling | 1-3 layers |
OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.
Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM was founded in 2010, and is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training. Besides, GLM was funded by the Pulp and Paper Design Institute, Pulp Equipment Mill and Paper-making Machinery Company, and in turn gathers together talents from each part. Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
>>
