Non-Conventional Machine Tools Contour Control Machinery China Double Column CNC Gantry

Product Description

Machine Parameters Company Name: NANTONG YIJI MACHINERY CO., LTD.

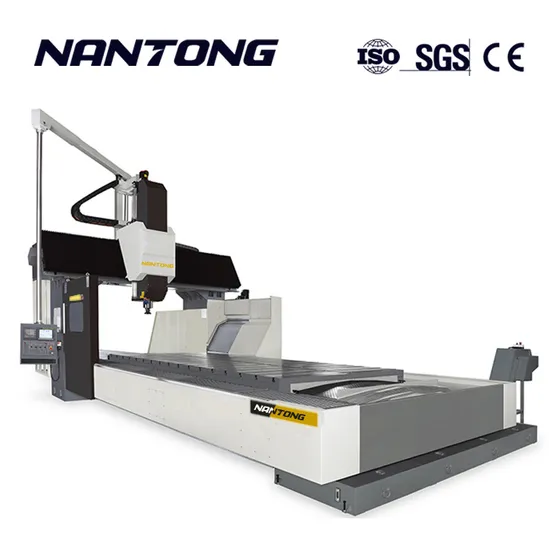

Product Name: CNC Gantry Milling Machine Yj-Skx4025 Lego Mindstorms
Keywords: China Double Column CNC Gantry, CNC Gantry Milling Machine, Gantry Machine Center, Gantry Machine, Gantry Machining Tool, CNC Machine, Machine Tool, CNC Machinery, CNC Milling Machine
Attributes: Processing Object: Metal, Process Purpose: Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools, Movement Mode: Contour Control

Model	Unit	SKX2016	SKX2500	SKX3020	SKX4025
Travel
X axis	mm	2,200	2,700	3,200	4,200
Y axis	mm	1,600 / 2,000/2500/3000
Z axis	mm	800(1,000-opt.)
Distance from spindle nose to table	mm	150 - 950(150 / 1,150-opt.)
Distance between two column	mm	1,700 / 2,100/2600
Working table
Table Length	mm	2,000	2,500	3,000	4,000
Table Width	mm	1,600 / 2,000
Table Load	kg	6,000	7,000	9,000	10,000
T- Slot (Width x Number x Pitch)	mm	22x7x180 / 22x9x180
Spindle
Spindle Taper	-	BT-50 / ISO-50 / CAT-50
Spindle Speed	rpm	3,000(6,000-opt.)
Spindle motor(cont./30 minutes rated)	kw	18.5 / 22 (22/26-opt.)
Feed
Rapid Traverse(X/Y/Z)	m/min	12 / 12 / 15			10 / 12 / 15
Cutting feedrate	mm/min	7,000
Accuracy
Positioning Accuracy	mm	±0.005 / 300 ; ±0.015 / Full travel
	mm	P0.03		P0.035
Repeatability	mm	±0.003
	mm	0.025		0.028
ATC
Tool magazine capacity	pcs	32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty)	mm	Ø125/245
Max. tool length	mm	350
Max. tool weight	kg	20
Others
Power required	kva	65
Pneumatic input pressure	kg/cm2	6.5
Machine net weight	tons	20 / 22	22 / 24	24 / 26	28 / 30
Floor space (LxWxH)	m	8.5x5.1(5.5)x4.7	10.5x5.1(5.5)x4.7	12.5x5.1(5.5)x4.7	15.2x5.1(5.5)x4.7

Product Description: The CNC Gantry Milling Machine Yj-Skx4025 Lego Mindstorms by NANTONG YIJI MACHINERY CO., LTD. is a China Double Column CNC Gantry that offers precise metal cutting and forming capabilities. With contour control motion, this CNC machine is a versatile tool for metal processing.

Automatic lubrication system

Spindle oil cooler

Air blast through spindle

Manual Pulse Generator

Working lamp

3-color alarm lamp

RS-232 interface

Heat exchanger for electrical cabinet

Water gun and air gun interface

Cutting coolant system

Twin auger chip removal system

Belt type chip conveyor with cart

X axis Heidenhain Linear Scale

Sub-table

3 axes manual pulse generator for mold processing

Coolant through spindle at 20/40/70 bar

Coolant through tool holder interface

Air conditioner for electrical cabinet

Transformer

Oil skimmer

Oil mist collector

Company Introduction NANTONG YIJI MACHINERY CO., LTD NANTONG YIJI Machinery Co., Ltd, founded in 1988, specializes in manufacturing a wide range of high-quality machine tools. Our product lineup includes move column CNC machine centers, floor type boring machines, CNC gantry milling machines, automatic solutions, and more. With our integrated business concept of "Quality is essence, excellence, full participation," we continuously strive to enhance the quality of our "YIJI" machine brand. Our specialized design, mature production workmanship, strict QC management, quick integrated solutions, and excellent after-service have earned us the trust of customers worldwide. We have expanded our market share and our products have gained a good reputation in Europe, America, and Southeast Asia. Our company holds import/export rights, export product licenses, CE certification, and ISO9001 quality system certification.
Innovation is at the core of our company, and we are committed to providing you with professional technology, quality machines, and the best service.
Our Service Warranty & After-sale service
24-hours technical support by E-mail or telephone. Provide extra accessories for the machine. We can also make customized programs according to your drawings or special design requirements. All of our products come with a 12-month warranty period. Man-made damage will be an exception. We can supply materials or tech support to help you fix any problems that may arise. We will cover the delivery charge for repair, return, or replacement cases.
Welcome to NANTONG YIJI MACHINERY CO., LTD! We are pleased to receive your inquiry for our CNC Gantry Milling Machine Yj-Skx4025 Lego Mindstorms. This China Double Column CNC Gantry is a versatile machine center for metal cutting and forming. With contour control, it offers precise and efficient machining. Explore our range of CNC machinery and milling machines today!

---
