Chocolate bean production line:
The product is a special equipment for chocolate bean forming, which is used for cold rolling pure chocolate of different shapes, including ball, egg, star, heart, triangle and other shapes.
Main technical parameters:
Production capacity :1500 kg / 8 hours
Roll revolution :0.3 ~ 1.5 RPM (adjustable speed)
Roller size :414 (diameter) * 400 (length) mm
Drum motor power :1.1kw

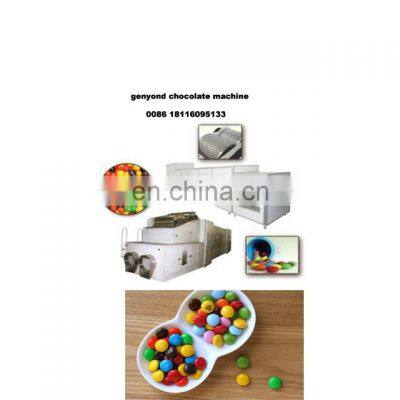

Chocolate bean production line
Chocolate bean production line:
The product is a special equipment for chocolate bean forming, which is used for cold rolling pure chocolate of different shapes, including ball, egg, star, heart, triangle and other shapes.
Main technical parameters:
Production capacity :1500 kg / 8 hours
Roll revolution :0.3 ~ 1.5 RPM (adjustable speed)
Roller size :414(diameter)* 400(length) mm
Drum motor power :1.1kw
Cooling circulation pump flow: 2.5cbm/hour
Cooling tunnel temperature :0 ~ 5℃
Cooling tunnel length :6 m * 3 floors
Width of PU conveyor :600mm
The cooling tunnel is equipped with an 8HP cooling compressor and the motor power is 1.1kw
Cooling liquid quantity :6280 w(evaporation temperature: -30℃, condensation temperature: 30℃)
Cooling tunnel evaporator area :40 square meters
Motor power of powder separator :0.75kw
(the separator is used to wipe the chocolate tail.)
Motor power of refrigeration system :10HP
Cooling tank capacity :600 liters
Machine power: 21.3kw
Size: 7220 * 1040 * 1840 (L * W * H)
Weight :2400kg
Note: ball of various shapes, oval, heart, star, triangle, etc.
Chocolate bean with two kinds of different technology producing ways, one is powder chocolate forming, another is liquid chocolate forming. It is full set of chocolate production line which is composed by Conche, holding tank, crushing machine, vibration sieve,forming machine, chilling unit, screening machine etc. It is suitable for producing high quality chocolate in various kinds of shapes like round shaped, bean shaped and oval shaped etc.
click here send a price inquiry
price
GYV001 5000 USDGYV002 10000 USDGYV003 15000 USDGYV004 20000 USDGYV005 25000 USDGYV006 30000 USDGYV007 35000 USDGYV008 40000 USDGYV009 45000 USDGYV010 50000 USDGYV011 55000 USD
Company Profile
related product :hi-tech chocolate bean chocolatebar production line/ New Technology Enclosed CleanChocolate Bean Production Line/Famous chocolate making machine productionline/chocolate making machine/chocolate/300kg Large Capacity Chocolate Lentils BeanProduction Line Machine/Automatic Chocolate Bean Forming Making Machine Production Line/Small Automatic Candy And Chocolate BeanMaking Machine Protein Bar Chocolate/New Hot sale Chocolate Bean Production Line/ Chocolate m m smarties ball making machinechocolate bean forming processing machine/Colorful Tasted Candy Bean ChocolateProduction Line Candy Machine/chocolate/small capacity automatic chocolatebean making machine/Chocolate Coating machine Hot sell Chocolatebean Candy Making machine/Famous chocolate making machine production line/chocolate making machine/chocolate/Import Attractive Chocolate Coffee BeanMaking Machine/Belt Type Chocolate Coating MachineChocolate Bean Making Machine And /M&M's Spherical/ball Chocolate Bean/Candymaking Machine/chocolate bean forming machine/chocolate Lentil machine / MM chocolate bean...
FAQ
click here send a price inquiry
Why Choose Us
packing1.We can load container at:Qingdao,Shanghai, Ningbo,Tianjin, Guangzhou, etc.2.We provide shipping methods:Courier service,Air transport,Sea Transport3.Can accept order:Full container cargo load,Less container load4.Delivery term :EXW,FOB,CIF,CNF, Door to Door etc.We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
Our ServicesTraining and Use1.We will supply with the machine operation manual in English version for installing and operation.2.We will make training video for client’s reference.3.Customer can come to our factory for free training.Warranty and After sales service1.Our warranty is within 12 months from the date when client receive the material.2.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.3.When some problems can’t be solved by customers, our engineer can go to door to support.
