High Speed Automatic Hydraulic Thread Rolling Machines for Thread Rod

Product Description

High Speed Automatic Hydraulic Thread Rolling Machines for Thread Rod

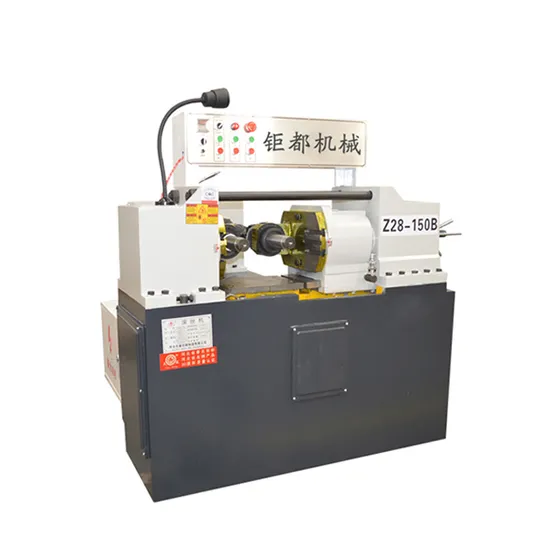

The Z28-150 Thread Rolling Machines for making anchor bolt is mainly used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kgf/mm²
1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.
2.This machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.
3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.
4.This machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return
5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.
Technical parameter of Thread Rolling Machines

Model	Z28-150 thread rolling machine
max diameter	56mm
min diameter	5mm
main power	5.5kw
hydraulic power	2.2kw
dimension	1550*1550*1450mm
weight	2000kg

Finished thread process by the thread rolling machines:

Company information:
We are professional manufacturer of all kinds of thread rolling machines, wire bending machines,our thread rolling machines have too many models. Z28-40 Z28-80 Z28-150 Z28-200 Z28-260 Z28-315 Z28-500 Z28-615 thread rolling machines. three axis thread rolling machine model: ZP28-30 ZP28-40 ZP28-65 zp28-100 etc

---
