Product Details
Product Description
Product Description

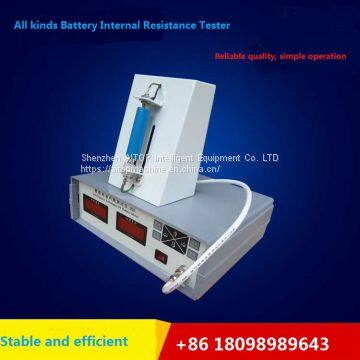

Battery cell IR Voltage tester
All kinds Battery cells testing Machine TOP-CZ200 Internal Resistance And Voltage Tester
Performance characteristics
1 Usually the smaller resistance for the cylindrical battery or phone battery , the higher quality for the battery.
So testing battery resistance is a rapid and accurate method to check battery performance.
2 Battery internal resistance tester adopts four line acquisition method, can test the resistance or impedance with or without power supply.
3 This battery internal resistance tester is widely used for battery manufacture and battery sellers to check the battery performance.
Technical Parameters
Specification
|
|
Model
| TOP-CZ200
|
Input Power
| AC220V±10%/50Hz
|
Internal Resistance range
| 200.0mΩ 2.000Ω
|
Internal resistance resolution
| 0.1mΩ 1mΩ
|
Internal resistance accuracy
| ±0.5mΩ/±5mΩ
|
Voltage range
| 20V
|
voltage accuracy
| ±0.01V
|
testing time
| 100ms
|
Test channel
| 1KHz
|
Product Picture
Techinical Parameters:
| SPECIFICATION |
| Model | TOP-500 |
| Power Supply | AC 220V, 50Hz |
| Power | 200w |
| Efficiency | 4000 pcs/h |
| Cells applied | 18650 battery cells |
| Programming interface |
| LCD screen |
|
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question,please
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
>>
