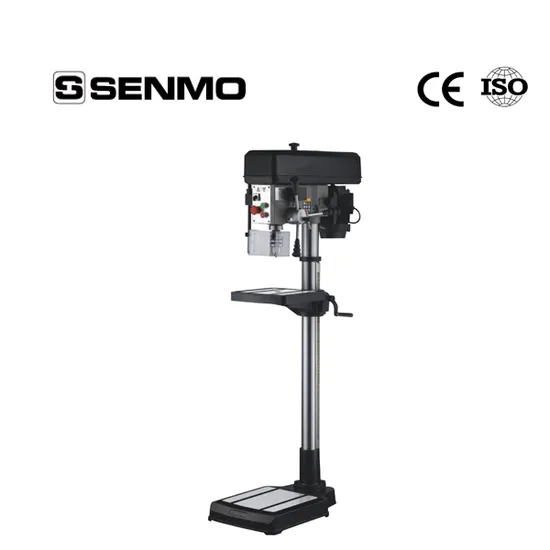

Zs1725f Senmo Vertical Type Drilling Tapping Machine with Good Wear Resistance

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.

ZS1725F

Structure

Vertical Drilling Machine

Layout

Vertical

Controlling Mode

Artificial

Hole Diameter

<50mm

Automatic Grade

Manual

Precision

Certification

Condition

New

Chuck Capacity

B16 1~16mm

Column Diameter

80mm

Spindle Travel

100mm

Swing

410mm

Spindle Taper

Mt2

Overall Height

1630mm

Motor Power

750W

Transport Package

Full Closed Plywood Box

Trademark

SENMO

Origin

China

HS Code

84592900

Product Description

Drilling Machine

Vertical Drilling Machine

Feature

Better rigidity due to construction by heavy solid cast iron after tempering failure processing.
Excellent appearance due to surface treated by multi-process spray treatment.
High precision due to highly processed operating table surface.
Good wearing quality and long performance life.
Harden and tempering treatment of spindle, gear and arbor.
Steel made handle seat assembly.
The machine is with front switch and emergency stop.
Solid and secure safety guards.
Good safety performance in accordance with the standard design of European and American countries.

Specifications	ZS1725F
Max. drilling capacity	25mm
Max. tapping capacity	M12
Chuck capacity	B16 1~16mm
Column diameter	80mm
Spindle travel	100mm
Swing	410mm
Max. distance spindle nose to table	850mm
Max. distance spindle nose to base	1160mm
Spindle taper	MT2
Spindle speed range	200~2400rpm
Step of spindle speed	5
Table size	320x320mm
Base size	600x385mm
Overall height	1630mm
Motor power	750W
Weight	128kg
Packing size	1525x655x440mm

Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
