Before Folder Gluer Fully Automatic Blanking/Stripping Machine for Mass Quantity Carton Production High Intelligent Labor Save Speed up to 16000 Sheets/Hour

Product Description

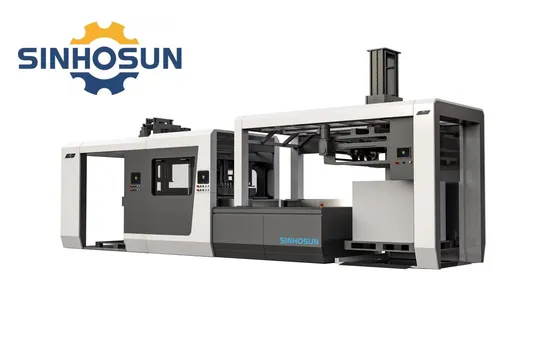

SH-1100SZ Fully Automatic Stripping/Blanking Machine Function and Profile
After a long period of research and development, combined with many years of experience in the field of waste stripping, we have introduced this fully automatic waste stripping machine. This machine has made a huge breakthrough in the waste stripping process ,This machine is used to strip the waste paper of product after die-cut:
1. Take the whole row as the unit, deal with a row of products in one action.
2.Realize automatic paper loading in innovative mode, which solves the long-term difficulties of waste paper stripping equiment.
3.The scraps of paper fall into the waste discharge channel during the stripping process,without manual removal, realize non-stop stripping.
4.The height of paper loading is increased to 11cm,significantly improved the efficiency.
5.Equipped with pre-stack loading function that can realize non-stop production.
6.Equipped with automatic paper collecting and palletizing system, ensures neat and orderly stacking in the collection area, making it easier to connect to the next process, reducing labour costs and increasing production efficiency.
7.Using servo motor driven and adopting the imported high precision ball screw and linear guide drive to avoid the integrating error and positioning error when machine is working; with PLC controlling,it is convenient to operate,safe and reliable.
Specification

MODEL	SH-1100SZ	WARRANTY	One year
MAX.PAPER SIZE	1100×1100 mm	MIN.PAPER SIZE	650×650 mm
STRIPPING SIZE	200*70 mm	STRIPPING PAPER HEIGHT	60-110 mm
LOADING VOLUME	1100*1100*1300mm	COLLECTING VOLUME	1100*1100*1300mm
STRIPPING SPEED(SHEET/H)	16000	VOLTAGE	380v50Hz
OVERALL POWER	9.5 kw	PRESSURE	8 Bar
OVERALL WEIGHT	5000 kg	OVERALL DIMENSION(L*H*W)	7500×3000×3000 mm

Partial Mechanism Function Description
FeederAutomatic paper loading, equipped with pre-stack loading system, loading,feeding,stripping at the same time, realize non-stop production.StrippingTake the whole row as the unit, deal with a row of products in one action.
The height of paper loading is increased to 11cm,significantly improved the efficiency.ManipulatorAutomatic robot dispensing,controlled by the reversible gear motors,pneumatic clamp the,material,finished products to the conveyor belt,improve transport efficiency,reduce labor costs,and improve productivity.Waste Discharge ChannelThe scraps of paper fall into the waste discharge channel during the stripping process,without manual removal, realize non-stop stripping.Paper Collecting SystemEquipped with automatic paper collecting and palletizing system, ensures neat and orderly stacking in the collection area, making it easier to connect to the next process, reducing labour costs and increasing production efficiency.Operation SystemUsing servo motor driven and adopting the imported high precision ball screw and linear guide drive to avoid the integrating error and positioning error when machine is working;
with PLC controlling,it is convenient to operate,safe and reliable.
ServiceSinhosun give our heartfelt thanks for your choosing of our products, service is our core. Our "lifetime worry-free service" covering the whole life cycle of equipment from service efficiency, service speed, maintenance cost and quality standard, and realize a customer-oriented value chain.Pre-saleAccording to your requirements and the providing box sample specification , our sale person will provide professional technical consultation services, and develop relevant solutions, and providing the performance and characteristics of products, etc.. In the early stage, sale person will communicate with you, ensure the models and specification of the equipment. Also we can custom machine for your special requirements, providing you a satisfactory reasonable production line.After-sales1. Establish one machine and one record management systemOur company implements the whole-process tracking management system from the factory to the useful lifespan of the products. Archiving management including the product name, specification model, factory number, date and user information , also including product acceptance registration, product assembly, the factory state, installation, customer situation, training, warranty and maintenance period of technology, quality records, and product transfer track records, etc, to ensure the quality security work of each sold equipment .2. One-year warranty and lifetime serviceFrom the day of equipment acceptance, we will provide free parts replacement services to you during warrant period, the freight of parts will be borne by buyer.
After one-year warranty, if your equipment failure, we will provide technical assistance, and provide you with paid maintenance services, including fault maintenance, replacement of the original factory parts.
