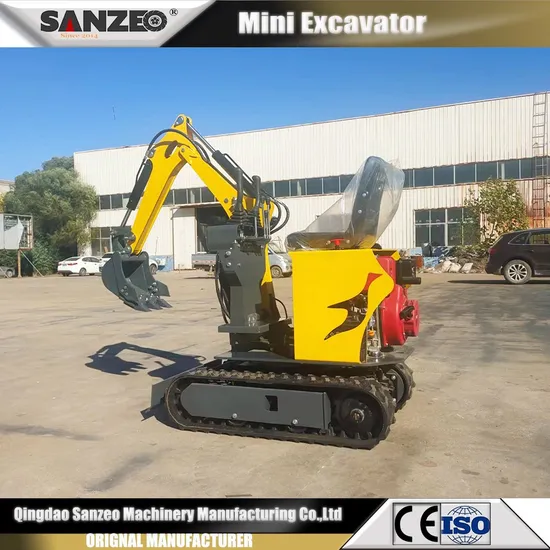

Powerful Compact Diesel Crawler Excavator for Mini Projects

Product Description

Product Description

Model	SZ08	Overal weight	710kg
Specification		Chassis ground clearance/mm	94.5
Fuel model	Diesel	Chassis width/mm	870
Digging bucket capacity	0.023cbm/120kg	Rubber track height/mm	310
Digging bucket width	410mm	Track width/mm	180
Overall Dimensions(L*W*H)/mm	1660*800*1970	Platform back turning radius/mm	810
Wheelbase/mm	800	Platform ground clearance /mm	350
Total length of track/mm	1220	HS CODE :	8429521100
Ocean container	14pcs/40fcl	Warranty:	1 year
Technical paremeters		Operating range
Engine horsepower	10	Max.Digging depth/mm	1250
Egine brand	KEPU KD192F	Max.Digging height/mm	2800
Engine speed	3000rpm	Max.Digging radius /mm	2570
Fuel consumption	1-1.6L	Min Rotation radius/mm	1000
Hydraulic tank capacity	16L	Max.Upgrade height/mm	180
Diesel tank capacity	8L	Max.Digging depth /mm	210
Radiator system	Hydraulic oil heat dissipation	Boom deflection angle (left)	30°
Bucket digging force/kn	9.7kn	Boom deflection angle (right)	90°
Arm dingging force/kn	8.6kn

Optional
FAQ
*How long is your lead -time ?
20 working days after deposite.
*What worranty you should offer?
1 year after delivered destination.
*Do you have stock ?
Depends,some standard truck we have the stock ,but some offstandard we offer in requirment.
*Shall you do OEM?
Definitely yes, we should do .
*Shall I customized the color?
Sure, you should choose yellow,red,blue white and the color you prefer.
*What advantages of SANZEO ?
independent research and development,from outlooking design to the mechanics
*When shall i visit your factory?
Anytime you get ready,you just inform me the date and the final arriving port where i should pick you .
*Why i choose SANZEO instead of other brand?
SANZEO is the manufacturing offered the products to the Foreign Trading company last 8 years .we know the global quality requirement well and we have the people English well known people taking care your requirements from PRESALE till to AFTERSALE.

---
