US$100.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Engine Type
Direct Injection, Water Cooled, Supercharge
Max. Digging Radius
6540mm
Max. Digging Depth
4015mm
Max. Digging Height
7050mm
Max. Dumping Height
5188mm
Transport Package
No Package
Origin
Qingzhou City, Shandong Province, China

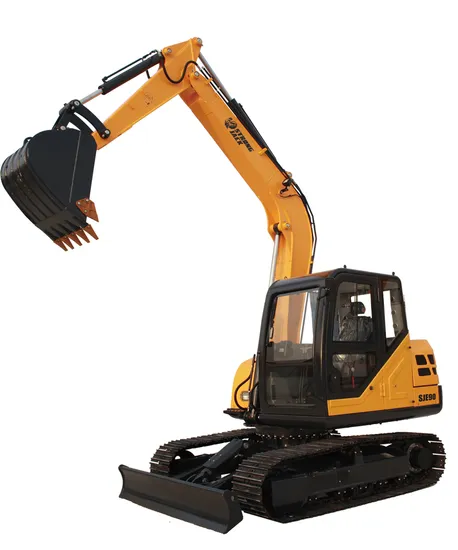

Product Description
Product Feature And Advantage
1. Equipped with Cummins Engine ,special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equipped with double fuel filter to guarantee fuel purity to protect engine
4. Extend hydraulic line for various attachments.
5. Comfort cabin, wide and open sight make operator easy to work.
6. Korean pilot control joystick make your operation easy &joyful
Technical Specification
Engine
| Model | Cummins QSF2.8 53kW/2200rpm |
| Type | Direct injection, water cooled, supercharge |
| No. of cylinder | 4 |
Main Performance
| Swing Speed | r/min | 0-12 |
| Traveling Speed | km/H | 2.8 |
| Grade ability | % | 70(35°) |
| Bucket Digging Force | kN | 58 |
| Arm Digging Force | kN | 40 |
Hydraulic System
| Hydraulic system working pressure | Mpa | 28 |
| Hydraulic Pump | | Hengli |
| Hydraulic Valve | | Husco |
| Swing Motor | | Eaton/Sunjin |
| Traveling Motor | | Eaton/PMP |
Overall Dimensions
| Overall Length | mm | 6410 |
| Overall Width | mm | 2278 |
| Overall Height | mm | 2630 |
| Mini Ground clearance | mm | 375 |
| Track width | mm | 450 |
| Undercarriage width | mm | 2200 |
| Undercarriage ground clearance | mm | 800 |
Operation parameters
| Operation Weight | KG | 9000 |
| Bucket Capacity | m3 | 0.4 |
| Max. Digging Radius | mm | 6540 |
| Max. Digging Depth | mm | 4015 |
| Max. Digging Height | mm | 7050 |
| Max. Dumping Height | mm | 5188 |
| Max. Dozer Cutting | mm | 344 |
| Max. Dozer Lifting | mm | 370 |
| Tail Swing Radius | mm | 1813 |
>>
