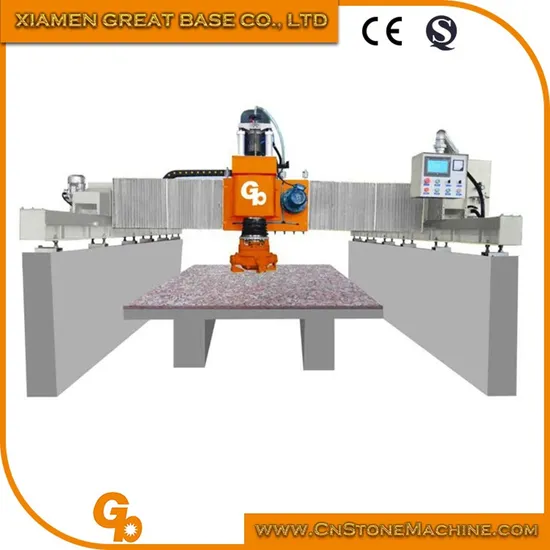

QSM-200 Bridge Type Single Head Granite Polishing Machine/for granite

Product Description

QSM-200 Bridge Type Single Head Polishing Machine can be used to polish slabs of granite, marble and quartz stone, etc.

Its simple structure design makes it easy for machine installation and maintenance.
The operation is also easy with the integrated control panel, even a worker without any experience can learn to master the machine in short time. Operator just needs to set the polishing head working range in advance on the control panel, the machine will work automatically as per operator's settings.

Polishing head vertical movement and polishing pressure on slab surface is adjustable by pneumatic cylinders.
The polishing head adopts abrasive blocks for polishing and it is fast to change abrasive blocks for different polishing phases.
Slab surface polished by this machine can achieve good flatness and shining gloss.

Name	Unit	QSM-200
Polishing head number		1
Installed total power	kw	12.5
Max. polishing slab size	mm	3200x2000
Polishing slab thickness	mm	8-60
Spindle rotation speed	rpm	450
Polishing head transversal moving speed	mm/min	3780
Polishing head longitudinal moving speed	mm/min	3300
Air consumption	m3/min	0.1
Overall dimensions (LxWxH)	mm	4500x4340x2420
Approximate weight	kg	4200

Main Features
1) Machine with competitive price and high quality ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in electric parts .
3) Guarantee for one year.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1. Do you have more stone machines?
Yes, we can produce all series of stone processing machines with competitive price and high quality.
2. Where is your factory?
Our factory locates in Xiangbei Industry Zone,Xiang'an,Xiamen,Fujian.
3. Do you have agent?
We don't have agent as we all sell directly to our customer, in this way, the customer can get lowest cost.
4. How much is this machine?
Please tell me your stone is granite or marble, the size, your destination port, so that I can quote you best price.
5. How long can I get my product?
Normally it takes 30 days to produce our products

---
