Automatic Disposable Paper Plate Making Machine Price Onetime Paper Plate Making Machine Paper Plate Changeable Mold

Product Description

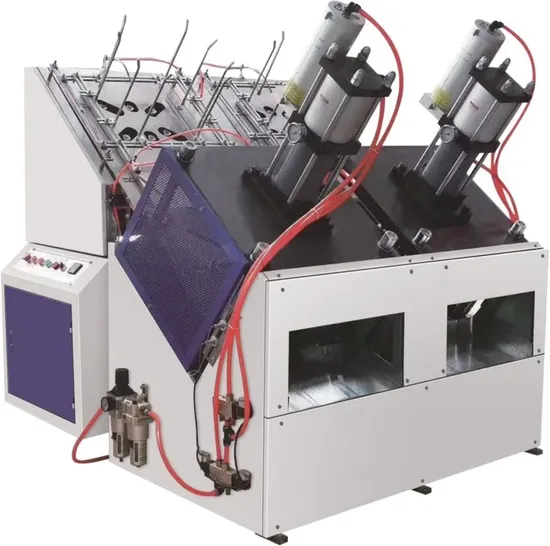

ZDJ-400 model Automatic middle speed paper plate(dish) forming machine Product Description
ZDJ-400 Model automatic Middle speed paper plate forming machine is designed according to the demand of market development .With function of automatic pneumatic paper sucking ,paper feeding .heating forming ,automatic plate out and constant temperature control. Automatic counting . It's an ideal equipment for producing varies type of round paper plate, square paper plate and special paper plate.
ZDJ-400 model paper plate machine compared with common automatic paper plate machine, It's recombination pneumatic and mechanization theory, with advantage of the more efficiency ,more stable performance, more safety operate .more easy maintenance. more humanized structure design
ZDJ-400 automatic middle paper plate forming machine use high efficiency pressure cylinder. Top pressure up to 5 ton, It's more fast and environmental than oil cylinder .
ZDJ-400 Model middle speed automatic paper plate forming machine is widely used for producing the paper and aluminum foil plate. It's can produce different size and different shape round or spare plate

Whole process of the paper plate forming
1Purchase the roll paper from paper factory.
Printing the paper as you required design and size
Punching the printed paper into different shape paper fan, You print the paper in printing company or buy the die cutting machine
Put the printed and punched paper plate fan on the paper plate forming machine
Product Parameters

Plate size	4-11inch(or other requested)
Raw material	100-1000g/m2(Original,the white paper,white cardboard, aluminum foil or other)
Rated productivity	60-80pcs/min
power	220v 50Hz
Total power	3KW
weight	500kg
overall	1420*1200*1900mm
Gas flow	0.8m3/min
Air flow	0.5-0.6Mpa
