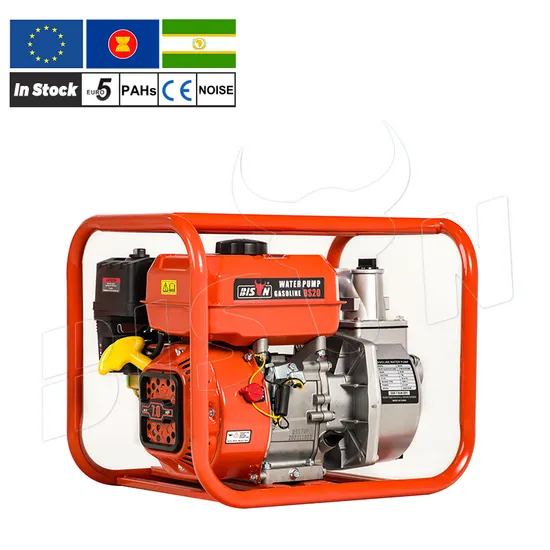

Bison Farm Irrigation Small 2inch 3inch Gasoline Engine Petrol Water Pump

Product Description

Product DescriptionProduct Advantages1. Our water pump's PISTON weight is 5% higher than fraternity, good for such as Oil Burning, Carbon Deposition, Piston Scuffing, and etc.
2. Our water pump's CAMSHFT is made of PA66 material, it can perform mechanical reciprocating motion with a load of 100N at 900 times/min.
3. Impeller designed with high efficient hydraulic system, save more than 20% fuel, and Save $0.7 Per Hour.In addition, 2" ,3" and 4" outlet gasoline water pump all complies with the Euro V emission requirement and EPA certification.
4. Stonger pressure boost performance: 80-140m pump lift, 150-200m³/H large flow bring high-efficiency water storage irrigation.
Product Parameters

Model	BS20	BS30	BS40A	BS20H	BS30H	BS20Hi	BS30Hi	BS40Hi
Inlet and outlet size(mm)	50(2.0")	80(3.0")	100(4.0")	50(2.0")	80(3.0")	50(2.0")	80(3.0")	100(4.0")
Pump Lift(m)	28	30	25	50	25	75	90	50
Suction height(m)	8	8	7	7	7	7	7	8
Flux(m³/h)	36	60	75	42	75	30	40	115
Model	BS168F-1	BS168F-1	BS170F	BS170F	BS188F	BS170F	BS188F	BS192F
Engine Power	6.5	6.5	7	7	13	7	13	18
Type	Single Cylinder, 4-stroke Air Coole Engine
Fuel Tank (L)	3.6	3.6	3.6	3.6	6.5	3.6	6.5	6.5
Gross Weight(kg)	28	30	39	28	33	30	61	64
Size(L*W*H)(mm)	490*385*405	510*385*425	635*480*525	510*385*425	635*480*525	510*385*425	635*480*525	635*480*525
20GP/40GP	385/900	330/828	160/402	385/900	275/690	330/828	180/380	180/380

The 100-hours test process of a 3inches petrol water pump
Time		Power (Hp)	Flux (M3/h)	Pump Lift (M)	Suction Height (H)
Day 1	18:00	6.52	61.97	30.11	7.97
Day 2	7:30	6.53	62.01	29.97	8.04
	13:00	6.50	59.94	30.15	7.95
	20:00	6.49	61.95	29.32	8.14
Day 3	7:30	6.50	62.15	30.19	7.95
	13:30	6.51	61.96	30.26	7.97
	20:00	6.49	61.97	30.15	8.01
Day 4	7:30	6.48	60.98	29.96	8.12
	13:30	6.51	60.05	30.15	8.03
	20:00	6.52	62.01	30.12	8.07
Day 5	7:30	6.49	62.13	30.24	8.01
	13:30	6.51	61.02	29.77	8.17
	20:00	6.51	60.57	30.10	8.06
Day 6	7:30	6.49	59.98	30.27	7.94
	13:30	6.50	61.96	30.1	8.11

Company ProfileTAIZHOU BISON MACHINRY INDUSTRY CO.,LTD who is a professional manufacturer of Generators,Engines,Water Pump,High Pressure Washer and Parts.BISON has more than 20+ Technology Engineers and 15+ Designers for OEM Service.BISON has more than 50000+ square meters of workshops and more than 300+ workers to deliver goods on schedule.
FAQWhy choose BISON water pump? Complete series of water pumps China BISON producing water pumps suitable for all occasions and specifications. For Agricultural irrigation/Pond pumping/High mountain pumping/Flood control. You can immediately find a pump that suits your needs on our website!
Water pump accessories BISON provides many accessories for water pumps. High quality pump accessories can improve pump performance or extend its service life.If you have a gasoline water pump, you can put the water pump outside and use it remotely Filter and suction hose. If you also would like to wholesale impellers and a replacement wheel kit to improve the versatility and practicality of the water pump. And we will also send you the water pump accessories in every cooperation.
Water pump maintenance The maintenance of the water pump is very easy to do. Before the water pump working, make sure to remove any visible debris from water pump inner. The water pump also should be flushed once in every year, but also should be dealt any blockages or shutdown condition, In addition, the instruction manual provided by BISON can also guide customers to maintain well, and BISON also has the after-sales service with 24hours online.
How many years can the water pump be used? BISON high-quality water pumps can effectively achieve their Working life at least five years. If it's has the properly maintained and does not overwork often, the working life will be more than that. This is why BISON water pumps are a pretty good investment.

---
