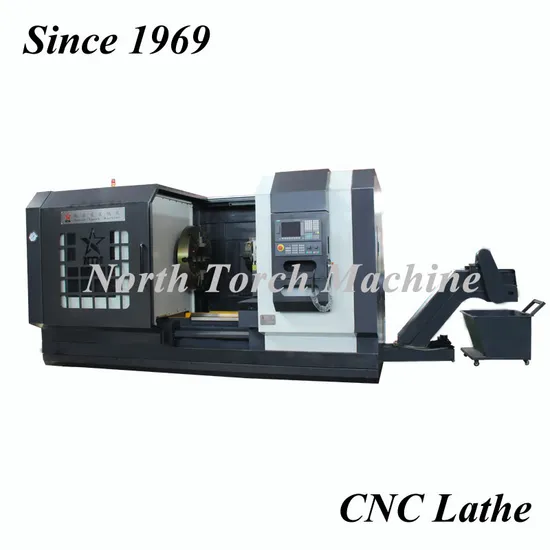

High Quality Facing CNC Lathe for Turning Tyre Mold, Automtive Wheel (CK61200)

Product Description

Universal CNC Facing Lathe Machine
For Machining Face End of Flange,Cylinders, Long Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,etc
1. Outstanding Characteristics:
All components of machine are imported foreign famous brands, such as FANUC or SIMENS Control System/ Schneider Electrical Control system, Japanese Bearing, ABB Motor& transmission box/gear box, etc. With more than 50 years' experience that our company was established in 1969 as a military enterprise. We are specialized in re-designing and manufacturing customized lathe machines per customer's special requests and demands. This is our special characteristics which makes us separate from other competitors.
1.) It has functions including screw thread, conical surface, curved surface, internal boring, etc.
2.) This lathe adopts frequency control system as its main drive system; driven by frequency control motor, the speed of main-shaft realizes stepless speed regulating, thus having different speeds to meet rational cutting speed requirements for the machining of different type of work-piece.
3.) This lathe consists of lathe bed, selective headstock, tailstock, blade adapter, electric control system, lubrication system, and so on. Selective headstock and tailstock are installed at the left and right side of lathe bed respectively.
4.) The main shaft can realize stepless speed regulating in a range of 10~300r/min; and the main spindle front bearing adopts high-precision double row cylindrical roller bearings, having high-degree of rigidity and rotary precision and easy to adjust.
5.) High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Application: This is a CNC horizontal roller lathe which is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of other shaft parts.
2. Technical Parameters

Name		CK61100	CK61125	CK61160	CK61200	CK61250
Description	Unit
Max. Swing over bed	mm	1000	1250	1600	2000	2500
Max. Swing Over the skateboard	mm	600	800	1200	1500	1800
Max. Weight of Work-piece	T	1	1	2	2	3
Max. Length of Work-piece	mm	700	700	700	700	700
Gears of Spindle Speed	/	Infinitely Variable Speed/step-less speed
Range of Spindle Speed	r/Min	10-300	10-200	10-160	10-160	4-80
Chuck Diameter	mm	800	1000	1250	1600	2000
Bearing Diameter of Main Front Shaft	mm	190	190	220	220	300
X,Z X,Z-Axis Feed Range	mm/Min	0-3000
Horizontal Stroke	mm	500	650	800	1000	1250
Longitudinal Stroke	mm	700	700	700	700	700
Main Driving Motor	Kw	Variable Frequency 11Kw-4	Variable Frequency 15Kw-4	Variable Frequency 22Kw-4	Variable Frequency 30Kw-4	Variable Frequency 45Kw-4

Rermarks:
1. The above 5 models of Horizontal Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features.
2. This series horizontal Lathe Machine have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
3. After-sale Service and Maitenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!

---
