Product Description
Product Description

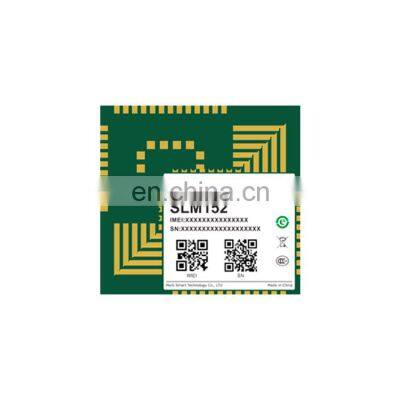

DescriptionProduct Description● MeiG Smart SLM152 is a high-performance Internet of Things module that supports LTE Cat NB1 and short messages. It has the characteristics of low power consumption, small package and low cost.● It is suitable for scenes requiring high power consumption and volume, such as smart meters, smart parking lots, smart cities, security and asset tracking, agriculture and environmentalmonitoring.Main advantages:● Support LTE Cat NB1● Massive access and ultra-low power consumption● Support SMS● TCP/IP built-in stack, MQTT, COAP● “e-SIM (internal)”● Industrial operating temperatureBasic Attributes:Product model:SLM152 modulePackaging:LCC packaging (58pin)Size:17.6 * 15.9 * 2.3 mmWeight:2 gModule Rate:LTE Cat NB1: DL 34/UL 66 KBPSModule Interface:1 * the Power Key3 * UART1 * SIM card interface1 * I2C1 * Reset1 * ADC1 * DACP1 * SPILED_STATUSWAKEUP_IN & WAKEUP_OUTAntenna: MainTransmit Power:23 + 2 DBMProtocols:TCP/UDP/SSL/MQTT/COAPEnvironmental Temperature:Working temperature: -40 ℃ to 85 ℃Storage temperature:- 45 ℃ to 90 ℃Humidity:5% ~ 95%Power Consumption:5u@psm (Type)2.5 ma@drx =1.28 (Type)Band Description of SLM152:SLM152Spectrum:LTE Cat NB1: B1* or B3* or B5&B8Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
