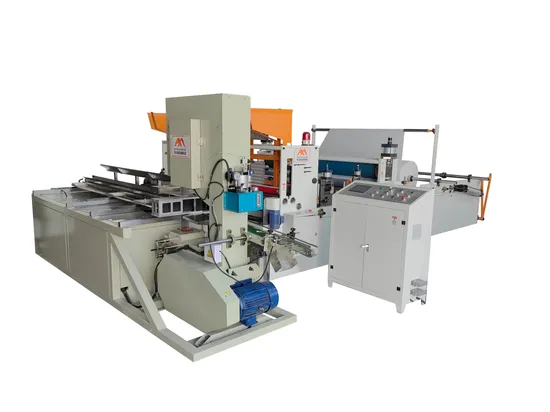

Automatic Small Roll Paper Perforation and Rewinding Machine with Cutting

Product Description

.Machine Features:
1.Small rolled paper produced by this machine are widely used in the toilet room of public places including hotels and office buildings, etc.
2.This machine is equipped with embossing, perforating and automatic cutting device.
3. The product is one-step forming. The unwinding roll of jumbo roll paper adopt flat belt for pushing.
4.Stepless speed adjustment adjust tension.
5. It adopts air swelling shaft to rewinding roll (or select to use pneumatic style to rewinding roll), the tension of rewinding roll can be adjusted.
Note: Optional double-sided 3D embossing and gluing lamination, single-sided 3D embossing and gluing, as shown in the video!
1 or 2 color printing unit is also available
Main technical parameter:
1.Production speed:100~180 m/min,
2.Product diameter:<=100-250 mm;
3.Raw paper roll diameter: ≤1200-1500mm;
4.Raw paper roll width:≤1800mm;
5.The distance between Perforated line: 100-130mm;
6. Machine power: 7.5KW (380V 50HZ, 3 phase)
7.Equipment over size (L×W×H):5.3*2.25*1.55M
8. About 4.5 Tons
9.Width of cutted toilet rolls: 90-120 mm
10.Requirement of Raw Paper: Double plies style is 13-20 g/m² ; Single ply style is 20-40 g/m².s
About Us
Quanzhou Huaxun Machinery Making Co., Ltd., established in 2009, is a manufacturer of household paper processing equipment and integrating design, R&D, manufacturing and sales. The products are mainly including kitchen towel toilet roll rewinding series, facial tissue making machine series, napkin processing machine series, slitting machine series, core winding machine series, Non-wevens processing machine series, and other relating auxiliary equipment. The products have passed the international ISO: 9001-2000 quality system certification and CE certification, and provide good services for the design and production of equipment suitable for the product market for global household paper enterprises.
FAQ
1.How to start an order with us ?
1. Inquiry -Email Wechat/whatapp replying within 12 hours.
2. Solution offer - Best quotation based on your product, production capacity ,invest plan ,budget ect.
3. Customized -Customized according your practical requirement.
4. Preparation before placing order -Share the machine space ,air ,power ,electric with you to ensure fit with your factory space.
5. Confirm the order -With the advanced payment for starting machine production .
2.How to check the quality of the machine you ordered and the guarantee ?
-Each part is marked with the source code of the supplier
1. Quality control -Each part is marked with the source code of the supplier.
12 months Warranty,We would express the free replacement parts during the warranty date.(exclude wearing parts). The express cost of parts should be paid by the buyer. After one year, our company will carry on the tracking of technology and quality.
2. Delivery- Packing according to international shipping FOB.
3.How about the Installation and training when the machine arrive your factory ?
1. Installation -Engineer Schedule confirmed 7 days before machinery arrival ,7-10days for installation depend on the machine operation difficulty .
2. Training The seller will send technicians to the buyer's factory to install and adjust the machine. The seller is responsible for the round-trip air ticket wages, and the buyer pays the technicians' accommodation (board and lodging) and transportation (bus fare, etc.). (If the technician is required to go there for the second time, the cost shall be borne by the buyer). The buyer should prepare electricity, gas source, raw materials, etc. before the arrival of the technician.
3. Cost of Installation & Training :You should cover round-trip air ticket wages, and the buyer pays the technicians' accommodation (board and lodging) and transportation (bus fare, etc.). You should prepare electricity, gas source, raw materials, etc. before the arrival of the technician..
4.How to build a long-term partnership between us ?
Feedback - Your sincere feedback is the most effective reference for the continuous improvement of our service.
Packing and shipping
Wooden pallet/ Plastic film/ Container
