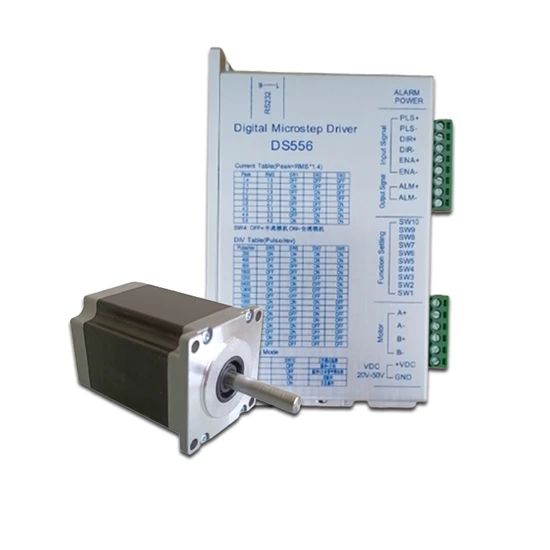

Factory Supplier Customized 1.8 Degree 2 Phase 24V 12V NEMA 23 57mm Stepper Motor with Driver for Textile Machinery

Product Description

Products Description Product Paramenters

Phases	2
Step Angle	1.8°±5%
Step Accuracy	40N(5.6 Lbs.)Push
	130N(15 Lbs.)Pull
Radial	70N(6.5 Lbs.)At End Shaft
IP Rating	40
Operating Temp	-20ºC~ +50ºC
Insulation Class	B,130ºC
Insulation Resistance	100MegOhms

MODEL	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Lead Wire (No.)	Holding Torque (N.m)	Motor Length L(mm)	Rotor Inertia (g.cm²)	Motor Weight (Kg)
57HB41F105B	1.5	1.8	4	4	0.4	41	120	0.45
57HB51F105B	1.5	5	13		0.7	51	275	0.65
57HB56F2AB	2	1.8	2.5		1	56	300	0.7
57HB64F2AB	2	3.6	12		1.4	64	360	0.85
57HB78F105B	1.5	4.5	15		1.9	78	480	1.1
57HB82F3AB	3	0.7	2.3		2	82	530	1.2
57HB100F4B	4.2	0.75	3		2.5	100	680	1.4
57HB115F4B	4.2	0.8	3.8		2.8	115	800	1.6
