High Quality Fiber Laser Marking Machine Raycus Portable CO2 UV Fiber Laser Engraving Machine with CE Certification 20W 30W 50W 100W

Product Description

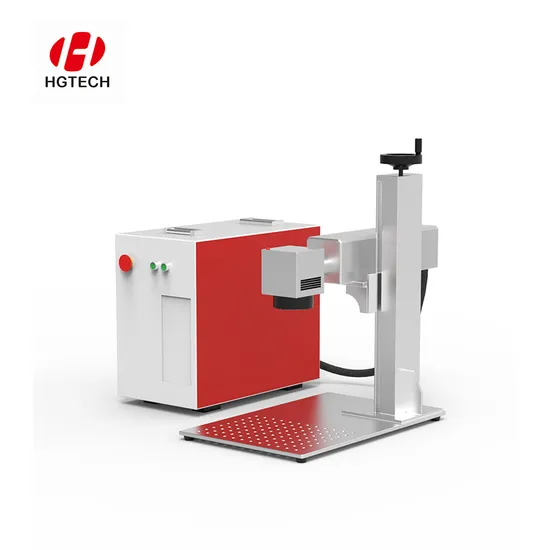

Smart HMP Series CO2/UV/Fiber Laser Marking Machine
Product Description
1.Fiber laser marking machine adopts high-speed sweep depiction oscillator, wavelength optical focus field mirror, stability good, fast speed.
2.Integrated design, small volume, low power consumption long life, high efficiency, maintenance-free, no consumables. Air-cooled cooling, fiber laser theoretical life 100,000 hours of light.
3.Can be marked with text graphics, two-dimensional code, regular flow No., portrait picture, etc.
If you have a high demand for fiber laser beams, then this fiber laser engraving machine will definitely be your choice.According to its many features, people also call it fiber laser engraving machine, metal laser engraving machine, metal laser marking machine, laser metal engraving machine, laser engraving machine metal.
Working field :
·The field lens determines the laser marking area.
· We have different lens sizes : 70x70mm, 110x110mm, 150x150mm, 175x175mm, 200x200mm, 220x220mm, 300x300mm.
· Small field lens have short focal length with high precision and stronger laser energy, more suitable for deep engraving and cutting.
Product Parameters

Machine name	Laser Marking Machine
Laser source	JPT (RAYCUS or MAX or IPG)
Laser power	20W 30W 50W 60W 80W 100W 120W (optional)
Laser wavelength	1064nm
Marking depth	0~2.0 mm (Depends on metal material and Marking time)
Marking speed	8000mm/s
Marking minimum character	0.1x0.1mm
Repeatability accuracy	±0.02 mm
Marking content	text, logo,pattern, date, bar code,pictures etc
Control software	EZCAD 2 lite (support Windows computer)
Software Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, DXF, DST, etc.
Machine unit power	≤500W
Machine cooling type	Air cooling
Machine power supply	AC110V 60HZ AC220V 50HZ
Machine weight	40~45KG
Machine warranty	24 months

Application
Laser marking machine for a variety of materials, It has a very wide range of applications. (such as jewelry, gold, silver, copper, aluminum, stainless steel, carbon steel, alloy, titanium, aluminum), mark on some plastic (such as ABS, PVC).
· metal plastic surface marking
· metal deep engraving and drilling
· metal surface cleaning
· metal thin sheet cutting
After Sales Service
1.One year quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery. Company Profile
HGTECH Co.,Ltd is one of the largest laser equipment manufacturers in China.(Stock code: 000988)
HGstar has now established a flawless market service system. More than 40 offices are spread across major metropolitan areas in order to get closer to users and expand services.hgstar is a subsidiary of hgtech
We provide you with professional and timely services to fully meet your production needs by relying on forward-thinking process research, a full range of product systems, efficient delivery response, and a perfect after-sales system.
R&D and pilot test base: It has an R&D and pilot test base in China of more than 60,000 square meters, and six regional technology centers provide professional and timely process services.
Production base: a smart manufacturing production base of more than 100,000 square meters in China, open 24 hours a day, 365 days a year to meet batch delivery demand.
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HG STAR!https://hgtech-factory.en.made-in-china.com/contact-info.html

---
