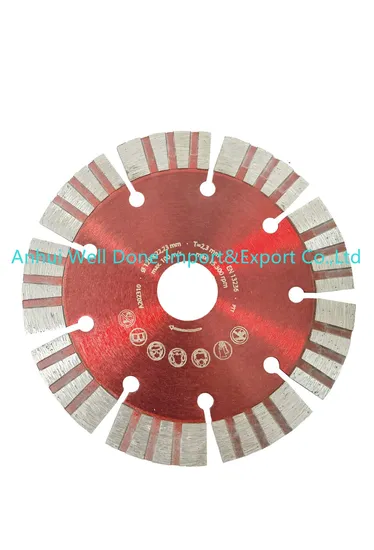

Sintered Segmented Dry Cutting Disc Blade

Product Description

Sintered Segmented Dry Cutting disc Blade
Product Description Features:Universal dry cutting blades,versatile used in cutting different materials.
Machinery:Angle grinder,circular saw,masonry saw,table saw.
Applications:Concrete,Brick,Clay paving,General construction materials.
Product Parameters

Item No.	Outer Diameter		Arbor	Segment Width(mm)	Segment Height(mm)	No.of Segments
	mm	inch
WD-801	105	4	20/22.23/25.4	1.8	8/10/12/15	8
WD-802	110	4.3	20/22.23/25.4	1.8	8/10/12/15	8
WD-803	115	4.5	20/22.23/25.4	2.0	8/10/12/15	9
WD-804	125	5	20/22.23/25.4	2.0	8/10/12/15	9
WD-805	150	6	20/22.23/25.4	2.0	8/10/12/15	12
WD-806	180	7	20/22.23/25.4	2.2	8/10/12/15	14
WD-807	200	8	22.23/25.4/30	2.4	8/10/12/15	16/18
WD-808	230	9	22.23/25.4/30/50	2.0	8/10/12/15	18
WD-809	250	10	22.23/25.4/30/50	2.8	8/10/12/15	18
WD-810	300	12	22.23/25.4/30/50	3.0	8/10/12/15	21
WD-811	350	14	22.23/25.4/30/50	3.2	8/10/12/15	24
Different arbor sizes and segment specifications are available upon request.

Detailed Photos Workshop
Packaging & Shipping Ship by UPS,DHL,FedEx,Aramex,or by air / sea / land as your request.

---
