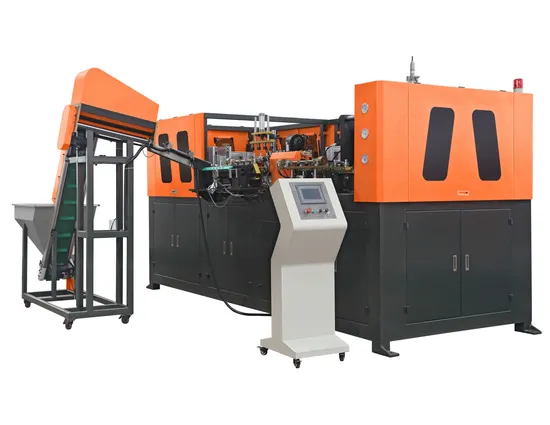

Pet Bottle Blow Moulding Machine (BM-A4)

US$48,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BM-A4
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE
After-sales Service
2 Year
Transport Package
Wooden Case
Specification
CE
Trademark
Mars
Origin
Zhangjiagang
HS Code
8477300000
Production Capacity
100 PCS/Year

Product Description

PET Bottle Blow Moulding Machine:
BM-A4 Full automatic bloing bottle machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Reasonable design, full automatic control, save power and labor.
Adopt high quality components.
Feeding system carries the performs by robot automatically.
Infrared oven heater adopts the quartz lamp to heat the PET tube.
Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble -shooting, maintenance and other benefits.
We have perfect service after sales
Main part:
Pneumatic part Valve AIR TAC/SMC
Cylinder
Electric part PLC LG
Operating system LG
Relay OMRON
Infrared thermometer America Raytek
Note All of the electrical components adopts CE/UL / CCC approved international advanced high-tech product.
Main parameter:
Model BM-A4
Productivity Depend on bottle design 3500-3800 Pcs/Hour
Product type Body diameter ≤ 100mm
Height ≤ 310mm
Neck diameter 18-38mm
Mold Cavity 4 cavity
Mold thick 240mm
Mold 260*240*370mm
Main machine power Electrical source power 380V/220V 50/60Hz
Rated Power 49KW
Really use power 10-15KW
Air source LP air compressor 1.6m3 /min 10Kg
HP air compressor 2.0m3 /min 30Kg
Air dryer 2.0m3 /min 30Kg
Cooling water Cooling water 15L/Min
Size L*W*H 1910*1858*1935mm
Weight 3600Kg
Auxiliary equipment( pre-form unscrambler) L*W*H 2000*950*2480mm
Weight 250Kg
Resin available PET
