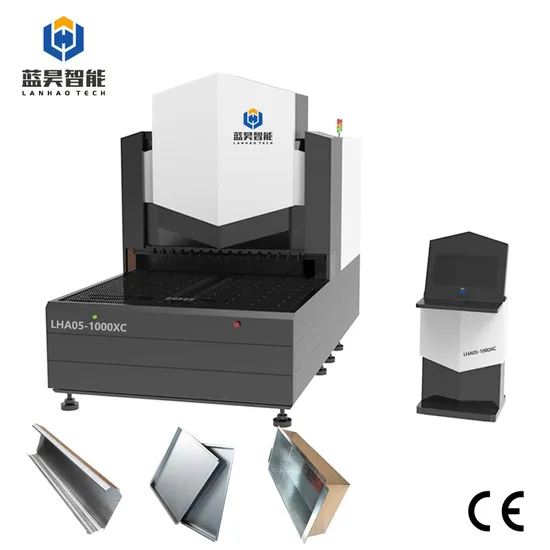

LHA-XC-05 series intelligent flexible panel bender, using the pressure arm loading method, the whole machine is designed and produced in accordance with the standard of high-precision machine tools. Mesh, corrugated, hollowed out and all kinds of flat or special-shaped metal sheet work pieces are suitable, with automatic Pressing arm Auto-location adaptation, oblique location adaption, dual C-axis rotation and other functions, with a wider range of applications.
| Parameters | LHA-1000XC | LHA-1400XC |
| Loading method | Suction cup | Suction cup |
| Max bending speed | 0.2 second /time | 0.2 second /time |
| Max. bending width | 1000mm | 1400mm |
| Bending hight | 170mm | 170mm |
| Rated voltage | 380v | 380v |
| Total Motor power | about 27Kw | about 36Kw |
| Average power | about 1.2Kw | about 1.6Kw |
| Noise | about 50dB | about 50dB |
| Machine size | about 285*150*280cm | about 365*190*290cm |
| Total machine weight | about 7t | about 10t |
| Max. bending thickness | UST 515N/mm2 201 stainless steel 0.8mm | UST 515N/mm2 201 stainless steel 0.8mm |
| | UST 515N/mm2 304 stainless steel 1.0mm | UST 515N/mm2 304 stainless steel 1.0mm |
| (thicker panel customizable) | UST 410N/mm2 cold panel 1.2mm | UST 410N/mm2 cold panel 1.2mm |
| | UST 515N/mm2 aluminum panel 1.6mm | UST 515N/mm2 aluminum panel 1.6mm |
| Minimum material thickness | about 0.35mm | about 0.35mm |
| Four sides forming minimum inner size | about 140*210mm (only for replaceable suction cup) | about140*210mm(only for replaceable suction cup) |
| Two sides forming minimum inner side | about 140mm | about 140mm |
| Max. bending size | about 1000*1000mm | about 1400*1400mm |
| Axis quantity | standard synchronized 11 axis | standard synchronized 11 axis |
| Power horn blank holder | optional | optional |
