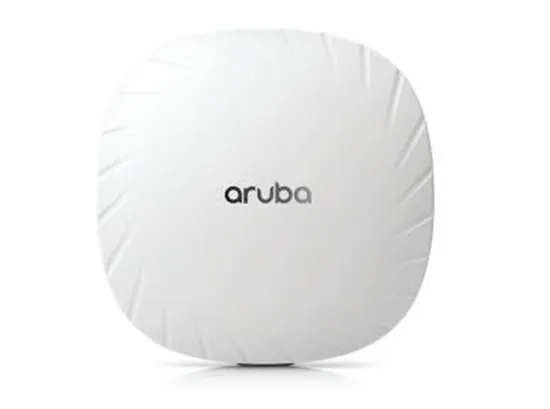

Very high Wi-Fi 6 (802.11ax) performance withdual radios Aruba 510 SERIESWIRELESS ACCESS POINTS

Product Description

Product Description
Very high Wi-Fi 6 (802.11ax) performance with dual radios
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements.
With a maximum real-world aggregate data rate of 2.69 Gbps (HE80/HE20), they deliver the speed and reliability needed for any enterprise environment.
KEY FEATURES
•2.69 Gbps maximum real-world speed (HE80/HE20)
•WPA3 and Enhanced Open security
•Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
•OFDMA and MU-MIMO for enhanced multi-user efficiency
•IoT-ready Bluetooth 5 and Zigbee support Product Details

TECHNICAL SPECIFICATIONS
Hardware variants	•AP-514: External antenna models •AP-515: Internal antenna models
Mechanical specifications	•Dimensions/weight (AP-515; unit, excluding mount bracket): - 200mm (W) x 200mm (D) x 46mm (H)/ 7.9" (W) x 7.9" (D) x 1.8" (H) - 810g/28.5oz •Dimensions/weight (AP-515; shipping): - 230mm (W) x 220mm (D) x 72mm (H)/ 9.1" (W) x 8.7" (D) x 2.8" (H) - 1010g/35.5oz
Wi-Fi antennas	•AP-514: Four (female) RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 1.3dB in 2.4GHz and 1.7dB in 5GHz. •AP-515: Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. - Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is 3.8dBi in 2.4GHz and 4.6dBi in 5GHz.
Environmental specifications	•Operating conditions - Temperature: 0C to +50C/+32F to +122F - Humidity: 5% to 93% non-condensing - AP is plenum rated for use in air-handling spaces - ETS 300 019 class 3.2 environments •Storage and transportation conditions - Temperature: -40C to +70C/-40F to +158F - Humidity: 5% to 93% non-condensing - ETS 300 019 classes 1.2 and 2.3 environments
Reliability	Mean Time Between Failure (MTBF): 560,000hrs (64yrs) at +25C operating temperature.
Regulatory compliance	•FCC/ISED •CE Marked •RED Directive 2014/53/EU •EMC Directive 2014/30/EU •Low Voltage Directive 2014/35/EU •UL/IEC/EN 60950 •EN 60601-1-1, EN60601-1-2
Regulatory model numbers	•AP-514: APIN0514 •AP-515: APIN0515
Certifications	•UL2043 plenum rating •Wi-Fi Alliance: - Wi-Fi CERTIFIED a, b, g, n, ac, ax - WPA, WPA2 and WPA3 - Enterprise with CNSA option, Personal(SAE), Enhanced Open ( OWE) - WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband - Passpoint (release 2) •Bluetooth SIG

Company Profile
Cooperation Clients
FAQ
1.Why choose us?
Helpyou Group Co.,Ltd is the leading global supplier of quality networking equipments and we have over 11 years experience in this field.
Extensive&Real Inventory
Save up 50%-99% off the Globel price list
Fully tested and Guaranteed
Flexible payment&Shipment
Unparalleled Experience&Service
2.What's the quality of the products?
All the items are brand original with full test before shipping.
3. What about warranty?
1 year warranty for new products.
3 months warranty for used products.
4. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T, Western Union, Money Gram, ****** and PayPal.
5. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
6. How about the delivery time?
Goods usually would be shipped out within 2days after receive the payment. Except futures order.
Our Sevices

Condition: 100% new original Aruba item

Warranty: 1 year

Payment ways: T/T; West Union; Paypal; L/C

Chose for logistics: DHL; Fedex; TNT; UPS; Some special logistics

Produce for after-sale problem:

1.Provide product model and serial number.

2.Describe which problem the products appear

3.Analyze product problems and propose solutions

4.Repair the machine and return it to the customer

Packing & Delivery
For Packing:
Original Factory Sealed Box (packaging) + Extra Carton Protection + Tape Seal = Waterproof + Anti-collision
Payment Method
1.T/T,Western Union, Alipay and Money Gram will be accept.Faster payment will help you to get the items earlier.
2.Remittance bank charges shall be borne by the remitter,and the collecting bank fees shall be borne by the beneficiary.
3.As the market changes and price fluctuation, please kindly pay the order within 3 days.
