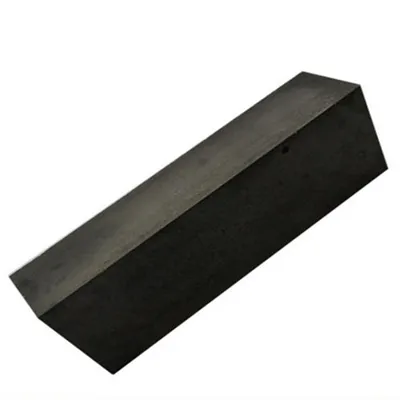

Graphite Brick /Carbon Brick Anticorrosion Graphite Brick for Phosphoric Acid Industry

Product Description

Xingshi - impregnated graphite carbon board and graphite carbon brick are made of high-quality graphite carbon materials, and organic compounds with strong acid resistance are added. It is refined by high pressure molding, vacuum impregnation and high temperature heat treatment. It has excellent acid and temperature resistance. It is an ideal lining material for phosphoric acid reaction tank and phosphoric acid storage tank in chemical industry.
The company impregnated graphite carbon board and graphite carbon brick have the following characteristics:
1. This product has excellent chemical stability, erosion resistance, wear resistance, low porosity, and excellent corrosion resistance
2. It has constant mass and volume, heat conduction and temperature resistance, and can not be damaged due to the great change of temperature.
3. During construction, it does not pollute the medium, does not cover with impurities, is easy to clean, does not reduce the heat transfer effect of long-term use, and has excellent solidification treatment process, which is especially suitable for equipment Anti-corrosion in strong corrosive medium.
The thermal expansion coefficient is small and the linear change rate is low. When it is used within 180 degrees, its performance is stable and its durability is strong.
5. The overall dimension is accurate, which can fully meet the requirements of construction and masonry technology. In addition to the dimensions listed in the table, all special-shaped graphite carbon bricks based on 23011365, such as thick type, wide model, arch angle brick, fan type brick, etc., are produced according to the requirements of user's drawings.
Xingshi Carbon , Welcome your inquiry . - Your trusted - Graphite material Supplier ! Physical and chemical indexes of impregnated graphite carbon board and graphite carbon brick :

Item	Unit	Impregnated Graphite Carbon Board	iImpregnated Graphite Carbon Brick
Bulkd Density	g/cm3	1.65-1.95	1.6-1.9
Compressive strength	Mpa	>49	>59
Tensile Strength	Mpa	>7.5	>12.5
Maximum Service Temperature	oC	150	150
Impermeability (	Mpa	0.6	0.8
Impregnating Depth	mm	10	20

Model and Size , We are factory produce according your customer's Drawing .
*****Application : Ideal lining material for phosphoric acid reaction tank and phosphoric acid storage tank in chemical industry.

---
